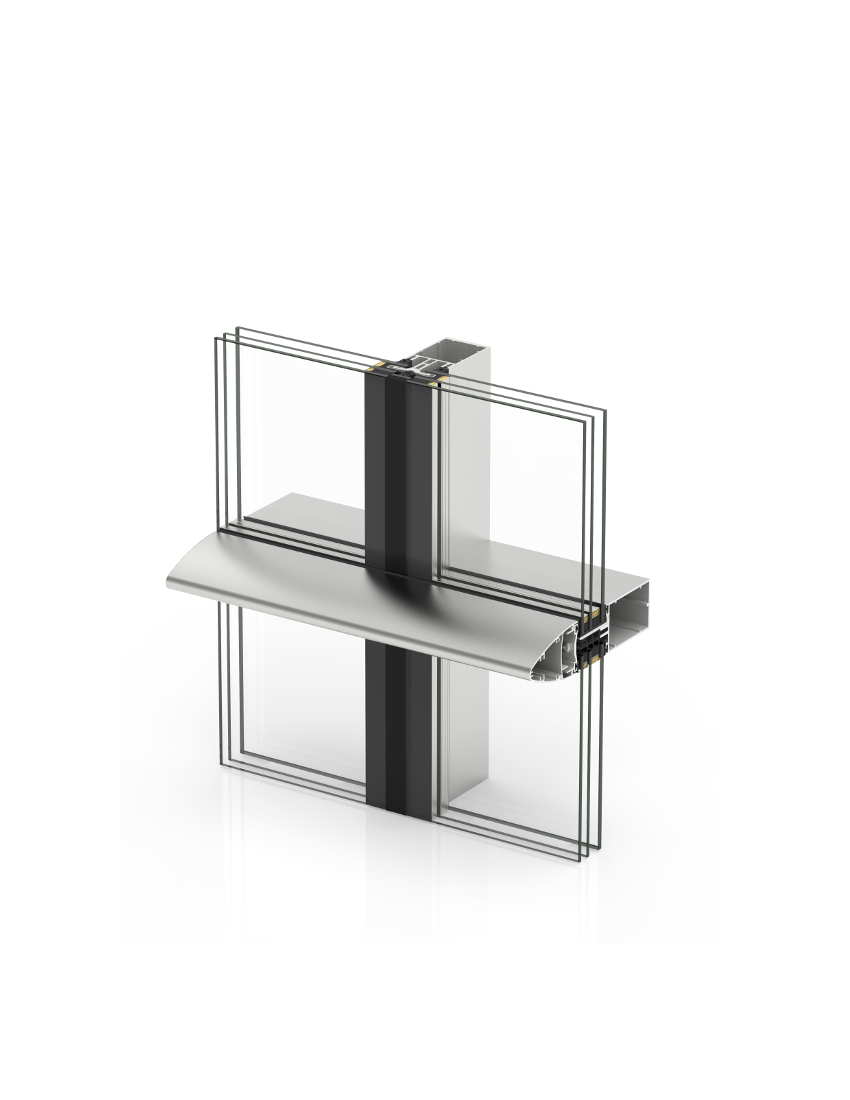

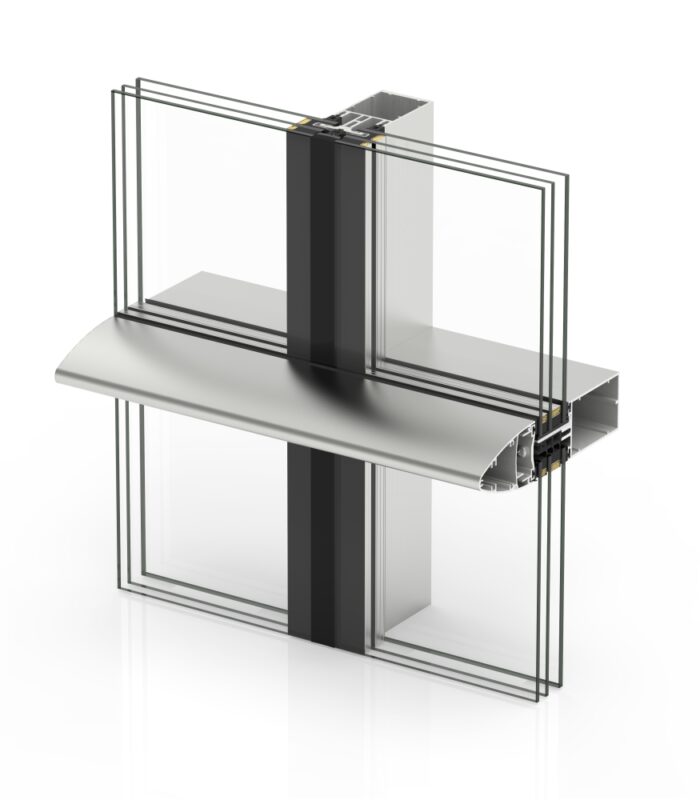

TPH 52 Façade

TPH 52 Façade

» Wide variety of mullions (from 16 to 230 mm) and transoms  (from 22.5 to 205.5 mm) that solve the different aesthetic and constructive needs of the architectonic sector

» Internal seen section: 52 mm

» Extensive profile range, their mechanical unions allows for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations

» Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles

» Mixed system that evolved from the combination of the TP 52 and the SG 52 systems. It maintains the pairing of the pressed profile and the cover profile on the horizontal gaskets, and it uses clips and the U-profile for its vertical edge

» This system is distinguished by its horizontal lines



» Glazing

Maximum glazing 64 mm*

Mínimum glazing 6 mm

*Consult us for greater thicknesses

» Opening possibilities

Hidden Top Hung

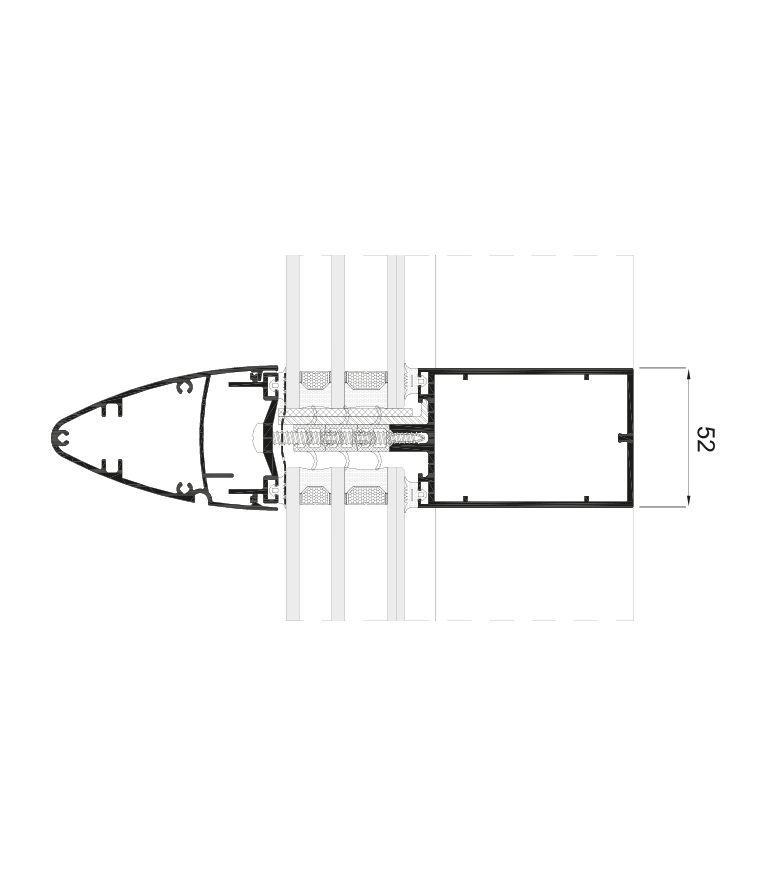

» Sections

Mullion 52 mm

Transom 52 mm

» Profile thickness

Mullion 2.1 & 3 mm

Transom 2.1 mm

» Polyamide strip length

6, 12 & 30 mm stackable profiles

» Minimum / Maximum opening dimensions

Min. Width (L) = 500 mm

Min. Height (L) = 650 mm

Max. Width (L) = 2500 mm

Max. Height (H) = 2500 mm

» Maximum weight / sash

180 kg

» Maximum weight of fixed lights

400 kg

Consult maximum weight and dimensions according to typologies

» Covers

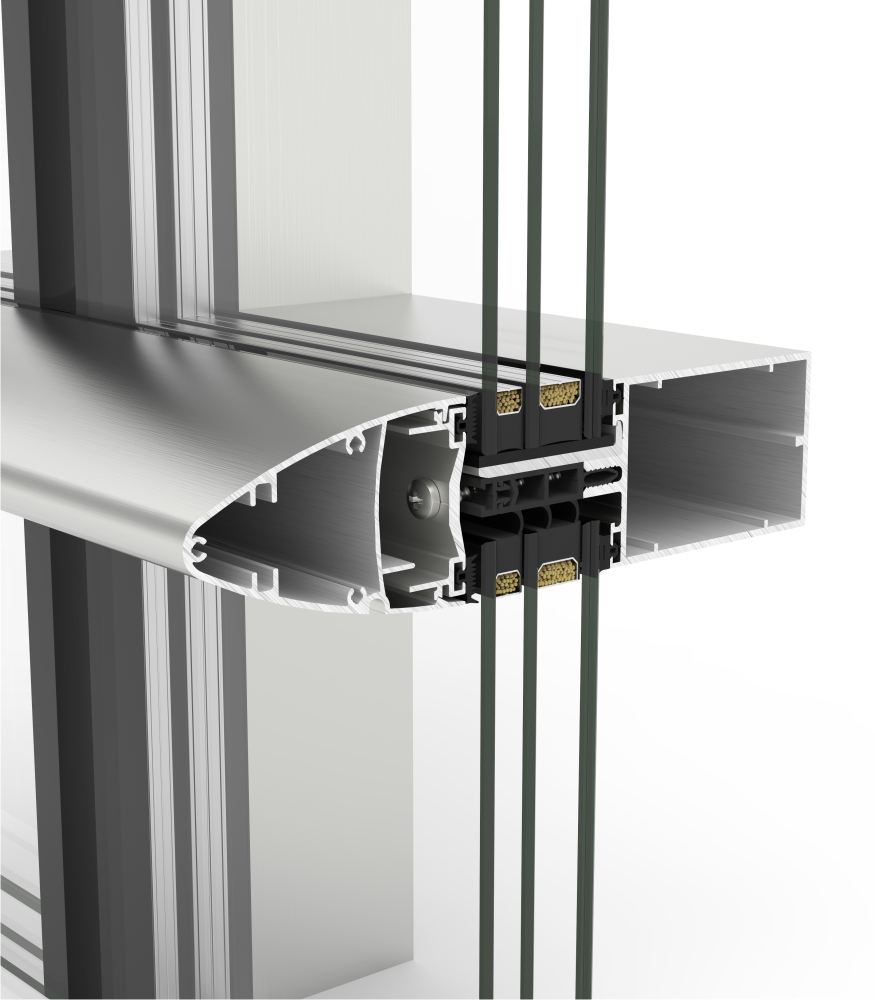

85 mm deep elliptical cover

H shape cover, 34 mm deep

Rectangular cover: 14, 19 100 & 145 mm deep

» Finishes

Powder coating / Anodised
