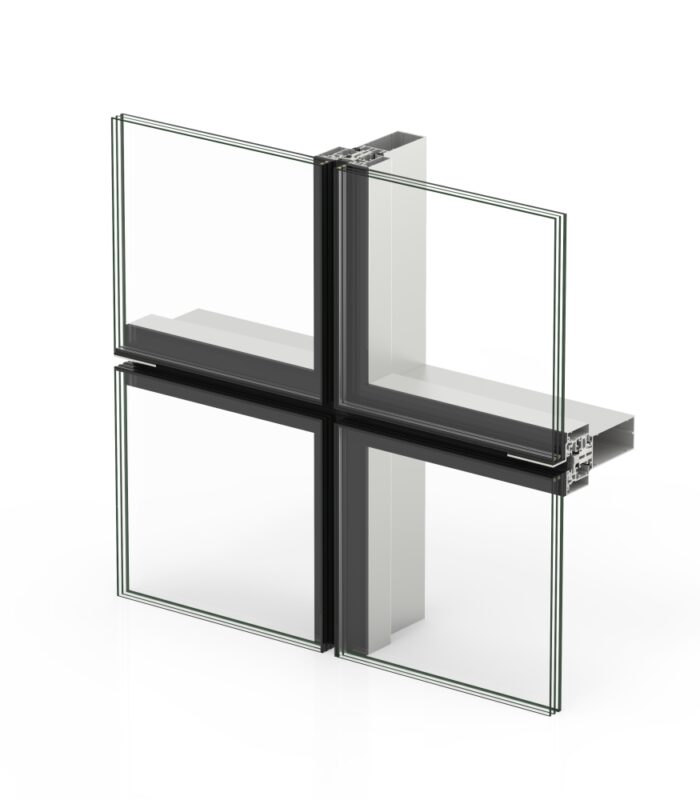

ST 52 Façade

ST 52 Façade

» Wide variety of mullions (from 16 to 230 mm) and transoms  (from 22.5 to 205.5 mm) that solve the different aesthetic and constructive needs of the architectonic sector

» Internal seen section 52 mm

» Extensive profile range, their mechanical unions allows for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations

» Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles

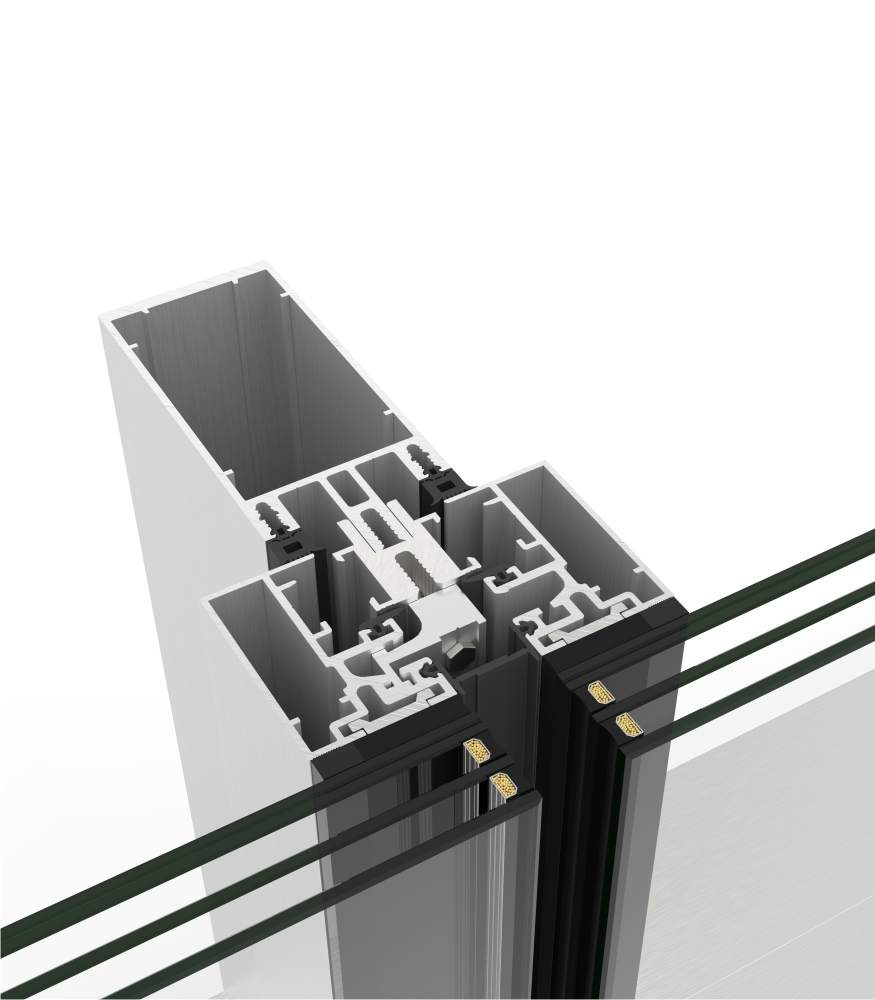

» The glass is glued to a aluminium frame, which is glued to the main structure using clips

» This system offes the same outside look, wheter it is fixed glazing or proyecting opening. Only glass finished, with EPDM gaskets



» Glazing

Maximum glazing 38 mm*

Mínimum glazing 6 mm

*Consult us for greater thicknesses

» Opening possibilities

Hidden Top Hung

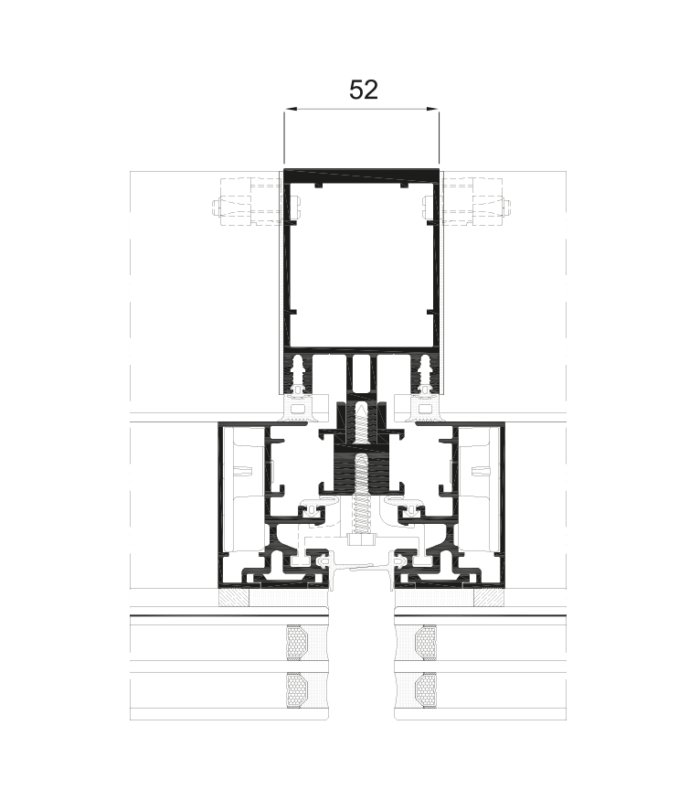

» Sections

Mullion 52 mm

Transom 52 mm

» Profile thickness

Mullion 2.1 and 3 mm

Transom 2.1 mm

» Minimum / Maximum opening dimensions

Min. Width (L) = 500 mm

Min. Height (L) = 650 mm

Max. Width (L) = 2500 mm

Max. Height (H) = 2500 mm

» Maximum weight / sash

180 kg

» Maximum weight of fixed lights

350 kg

Consult maximum weight and dimensions according to typologies

» Finishes

Powder coating / Anodised
