4900 Sliding HI

4900 Sliding HI

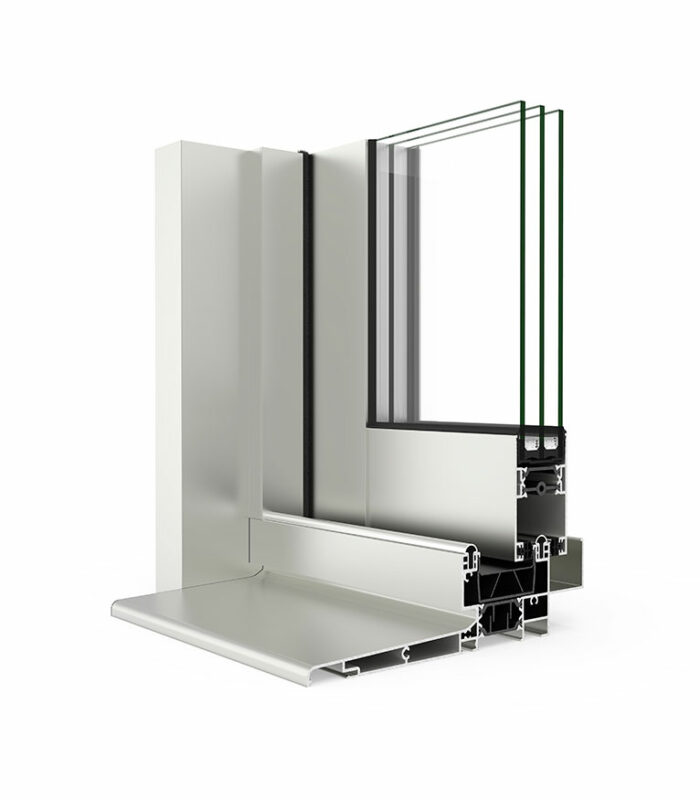

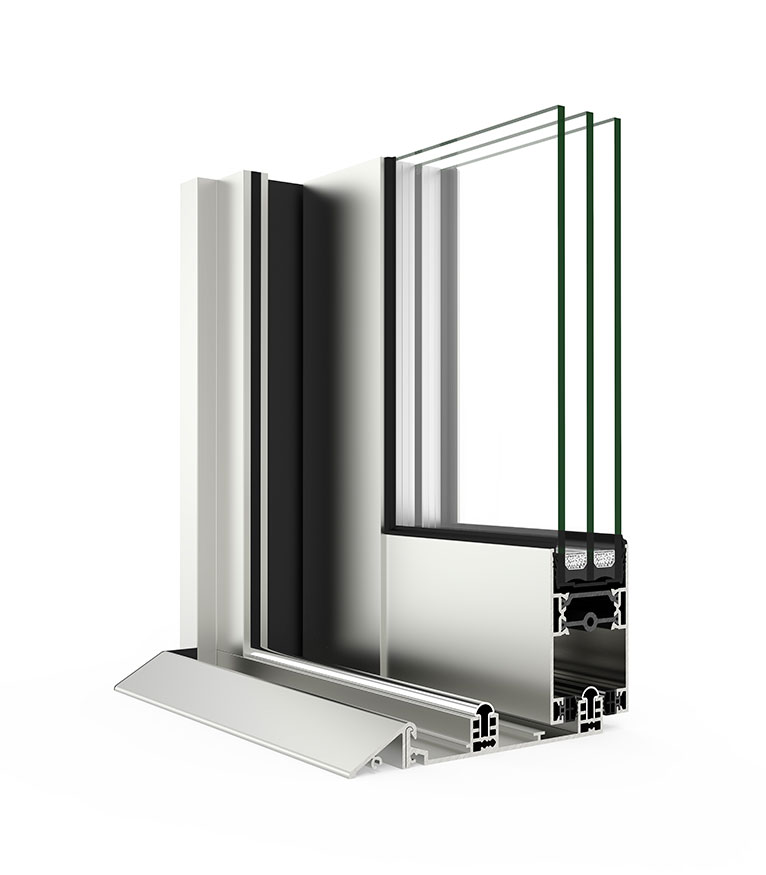

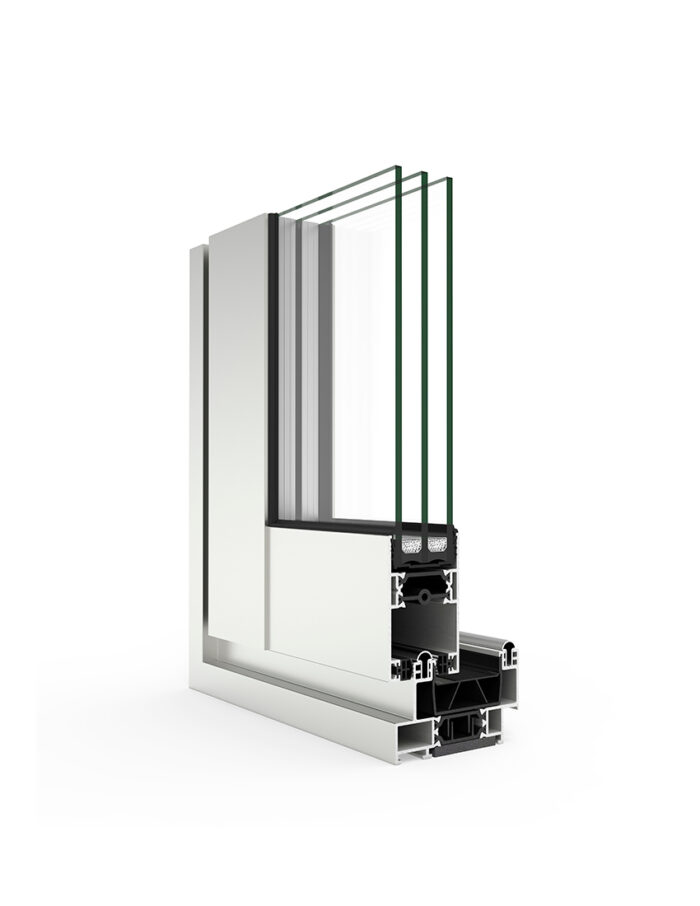

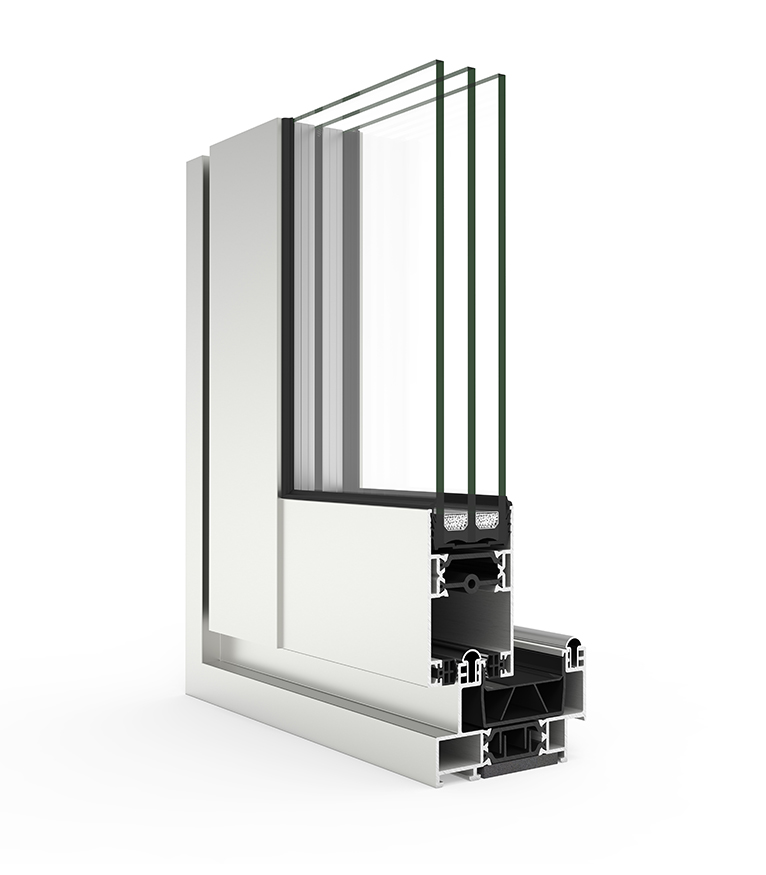

» Sliding window and door system with straight aesthetic which has a slim interlock of just 35 mm.

» It allows to have glass thicknesses of up to 36 mm, increasing the thermal and acoustic performance.

» Its sashes of up to 240 kg can reach the dimensions of 2200 (W) x 2600 (H) mm.

» Maximum glazing

36 mm

» Opening possibilities

Sliding of 2, 3, 4 & 6 sashes

Possibility of 1, 2, 3 & 4 rails

Pocket possibility

Possibility of interior and exterior corner sash at 90º without mullion

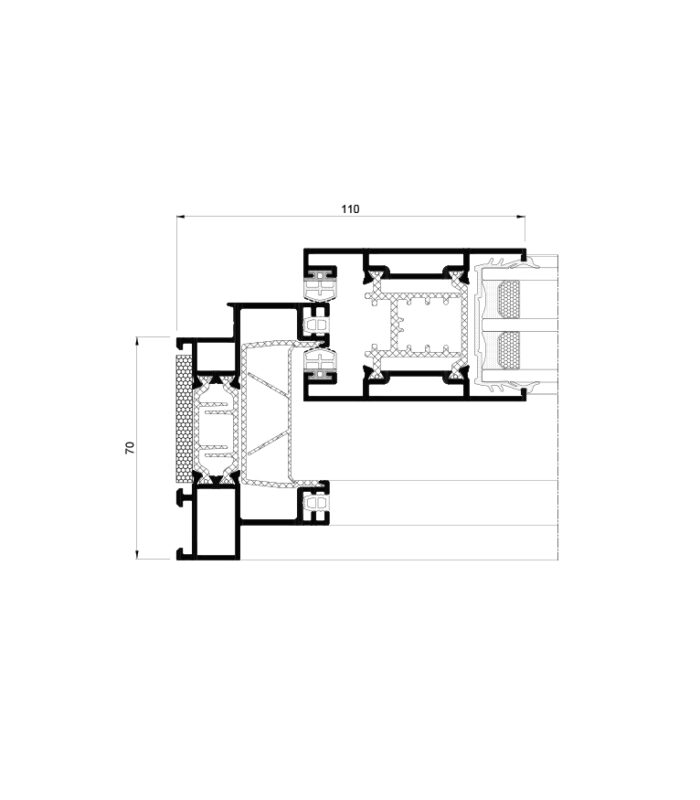

» Sections

Frame 70 mm - 3 Rails 126 mm

Sash 48 mm

» Profile thickness

Window 1.6 mm

» Polyamide strip length

Frame 34 mm

» Maximum dimensions / Sash

Width (L) = 2200 mm
Height (H) = 3000 mm

» Maximum weight / Sash

240 kg

Please consult regarding maximum weight and dimensions for other opening types

» Finishes

Possibility of dual colour systems

Colour powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodised
