4700 Sliding

4700 Sliding

This sliding system, available both in slide and lift & slide versions, becomes an ideal solution for closing large spans.

It presents modern aesthetics in straight lines, a reduced interlock section and large glazed surfaces that ensure bright and comfortable areas, due to its thermal and acoustic performance.



» Maximum glazing thickness

36 mm

» Opening possibilities

Sliding of  2, 3, 4, 6 & 8 sashes

Possibility of 1 rail (1 sash+ 1 fixed)

Possibility of 2, 3 & 4 rails

Possibility pocket solution 1, 2, 3 & 4 sashes

» Sections

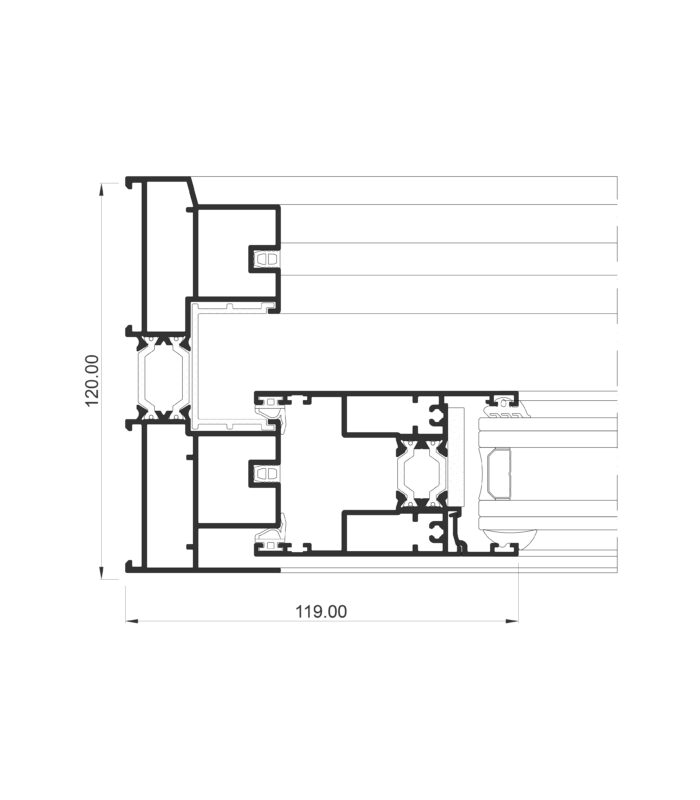

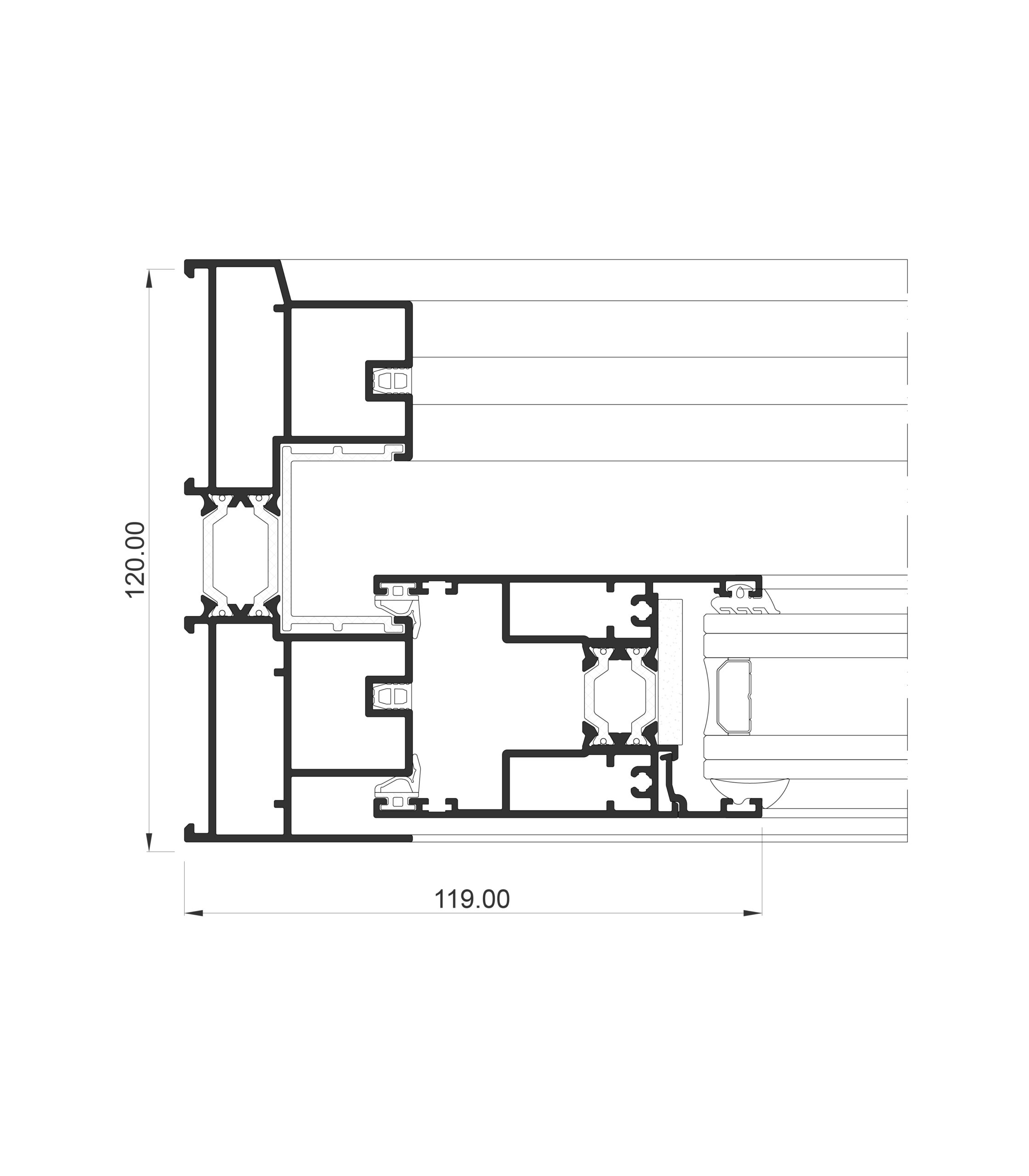

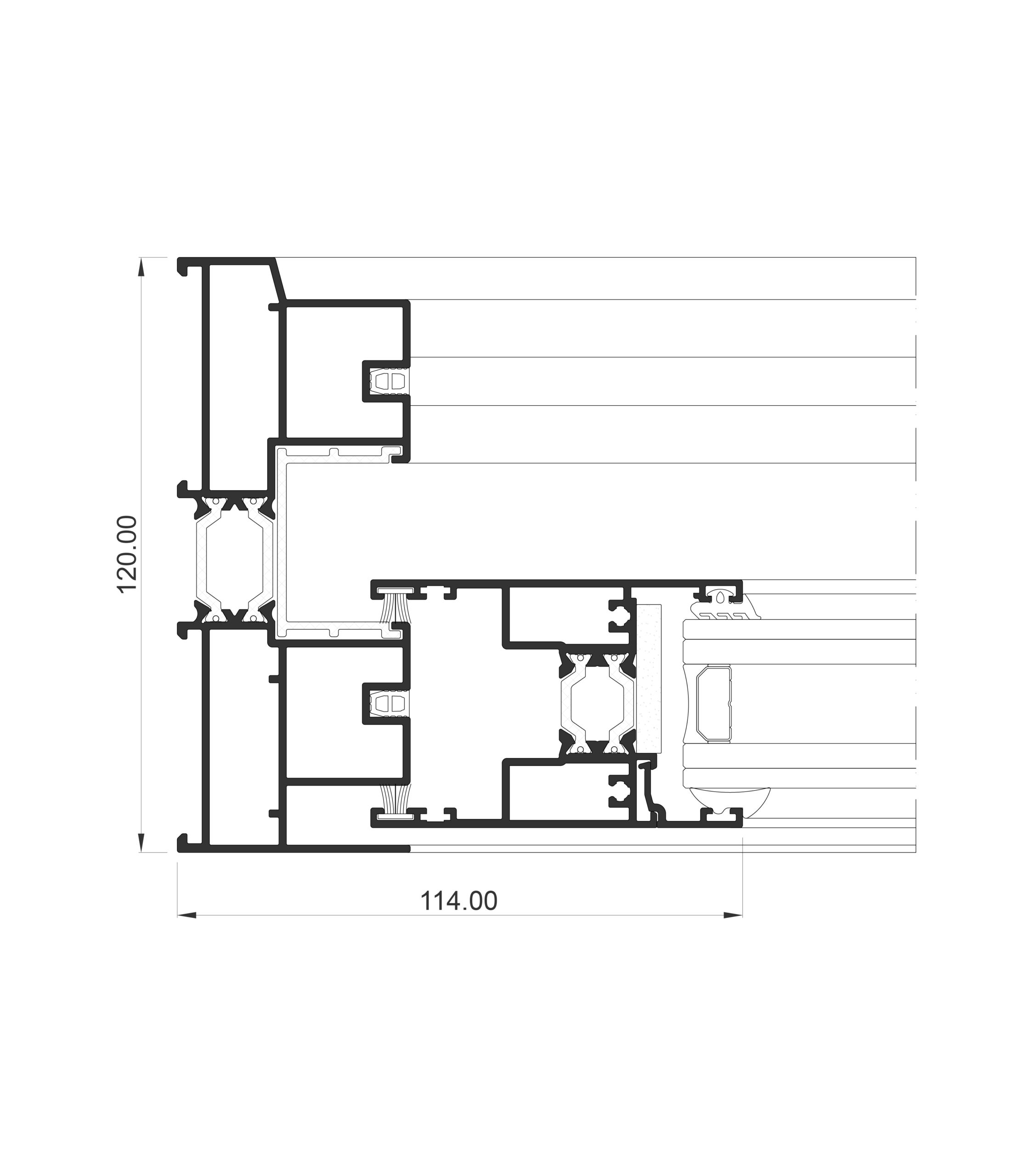

Frame 120 & 115 mm

Sash 50 mm

» Profile thickness

Balcony 1.5 mm

» Polyamide strip length

20 & 25 mm

» Maximum dimensions/sash

Width (L) = 2,500 mm
Height (H) = 3,000 mm

» Maximum weight/sash

Slide: 280 Kg

Lift & Slide: 300 Kg

Please consult regarding maximum weight and dimensions for other opening types

» Finishes

Possibility of dual colour systems

Colour powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodised
