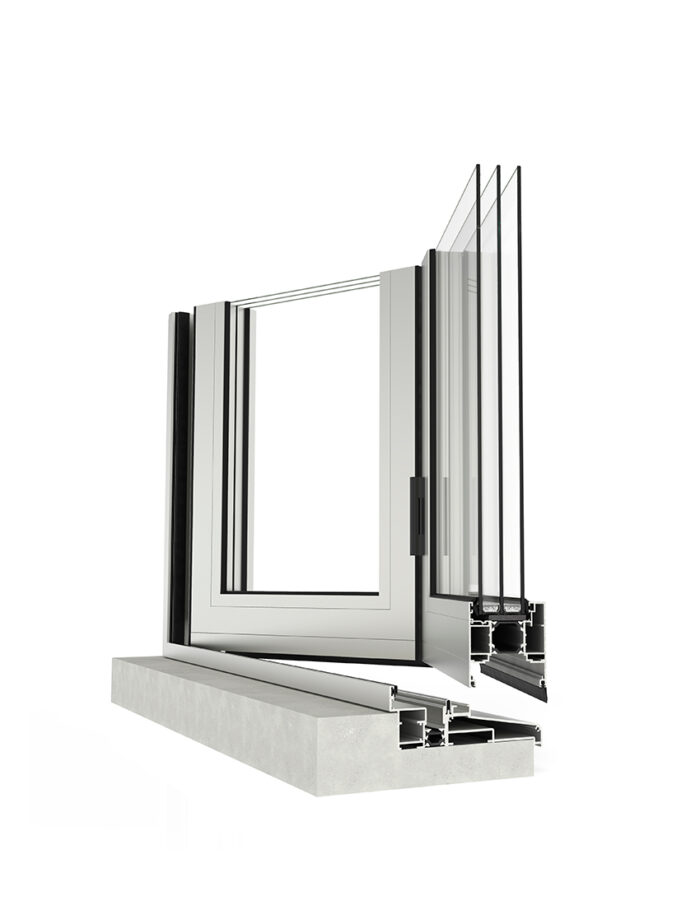

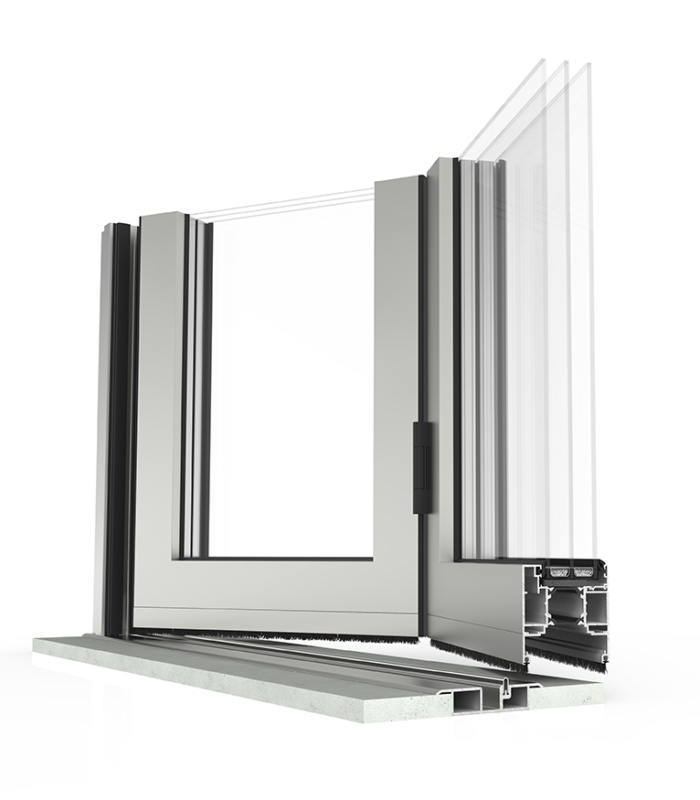

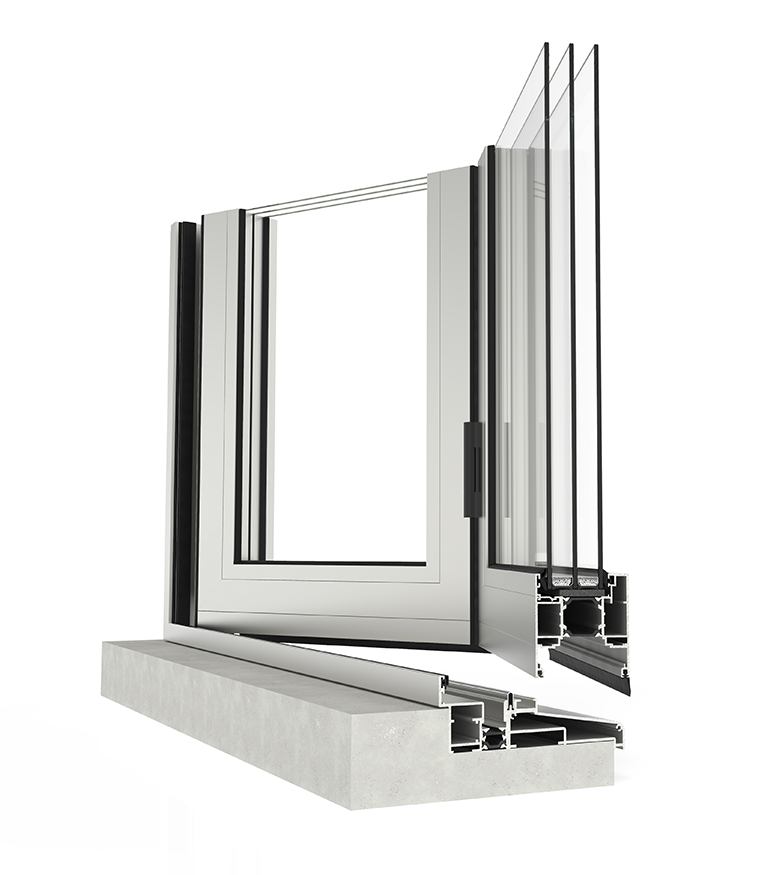

Bi-Fold

Bi-Fold

» Up to 14 sashes: inward and outward opening

» Possibility of either even or odd number of sashes

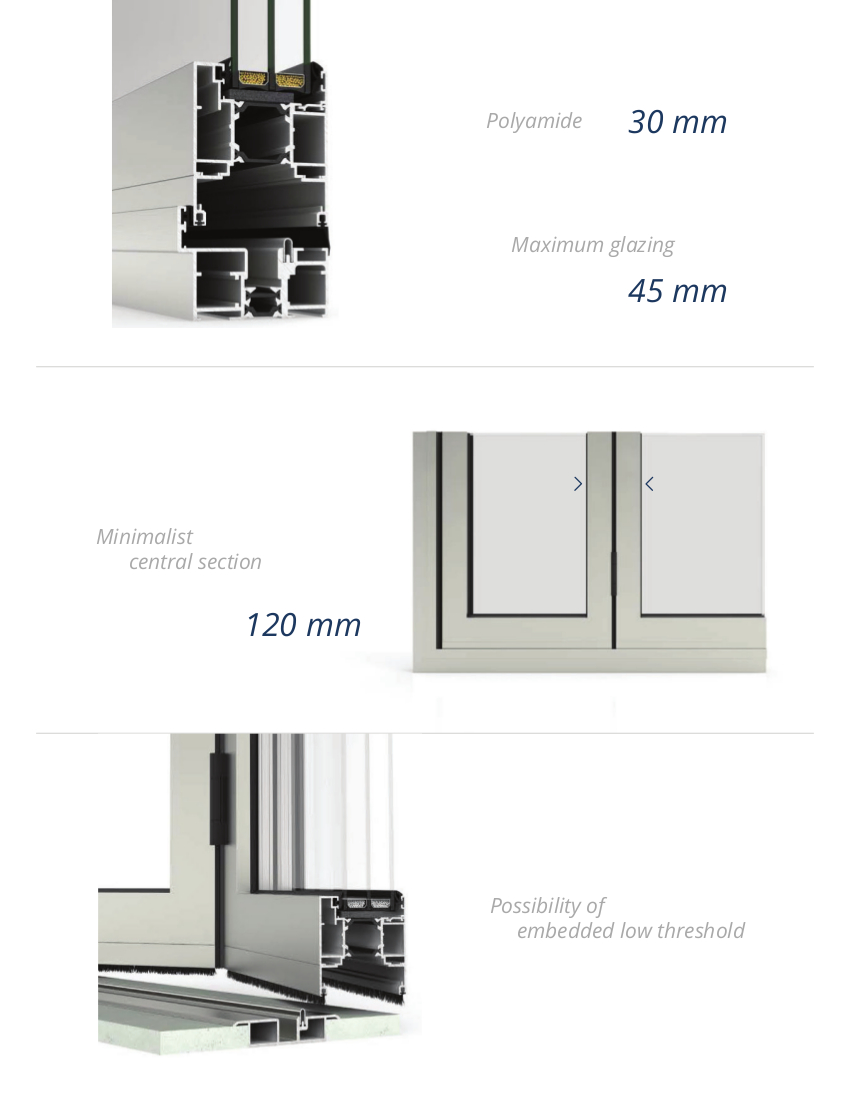

» Option to embed the lower frame in the floor

» Maximum glazing thickness

45 mm

» Opening possibilities

Interior

Up to 14 sashes

Exterior

Up to 14 sashes

Possibility of corner sash at 90º without mullion

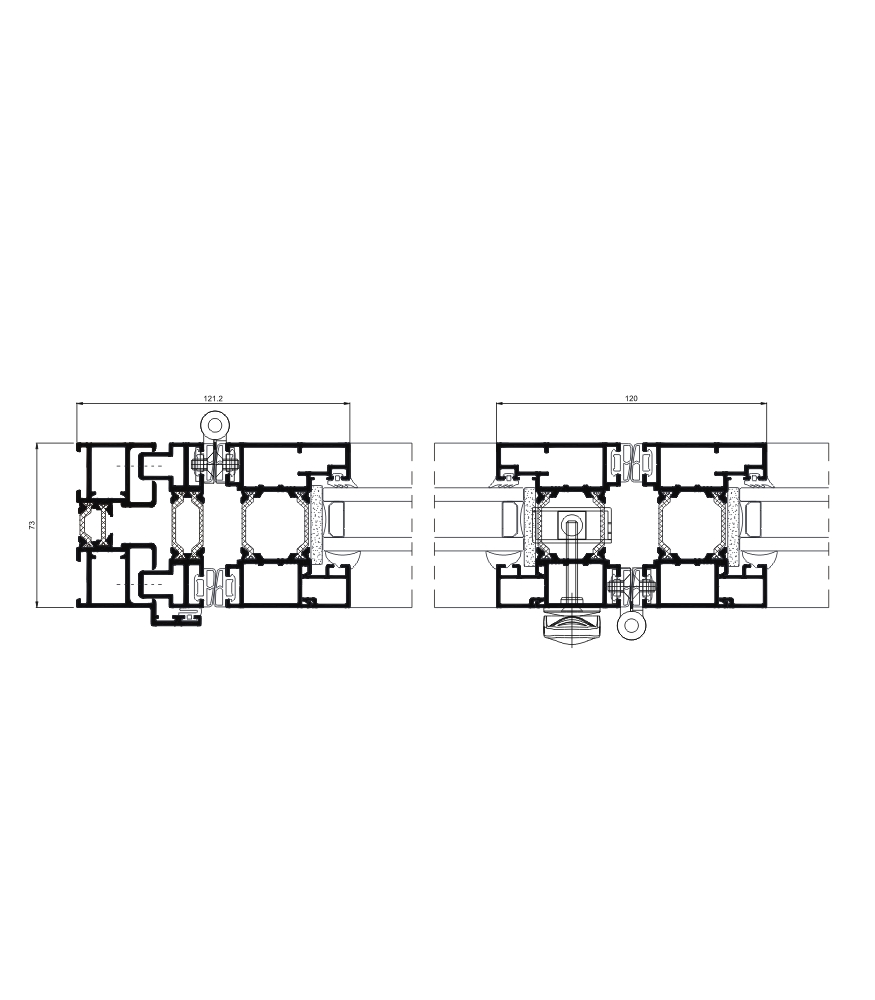

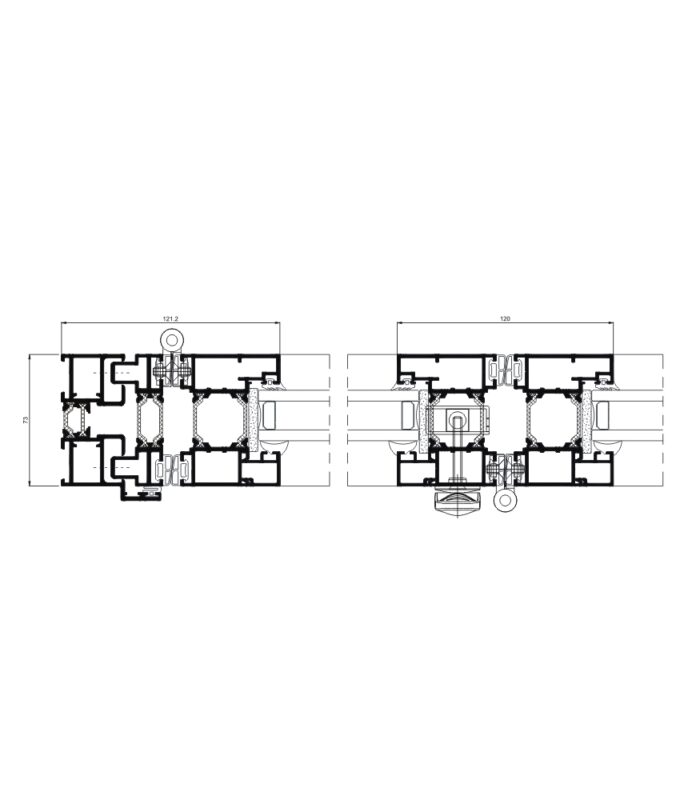

» Sections

Frame – 73 mm / Sash – 73 mm

» Profile thickness

Door 1.8 mm

» Polyamide strip length

Frame 20 mm / Sash 30 mm

» Maximum dimensions/sash

Width (L) = 1,200 mm
Height (H) = 3,000 mm

» Maximum weight/sash

120 kg

Please consult regarding maximum weight and dimensions for other opening types

» Finishes

Possibility of dual colour systems

Colour powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodised
