COR Vision Plus Sliding

COR Vision Plus Sliding

» Minimalist sliding system specially suitable for large dimensions (until 4.000 mm/sash of width or height)

» Possible to cover great openings with a glass surface of 94%

» Visible section of just 25 mm

» Outstanding thermal and acoustic performance

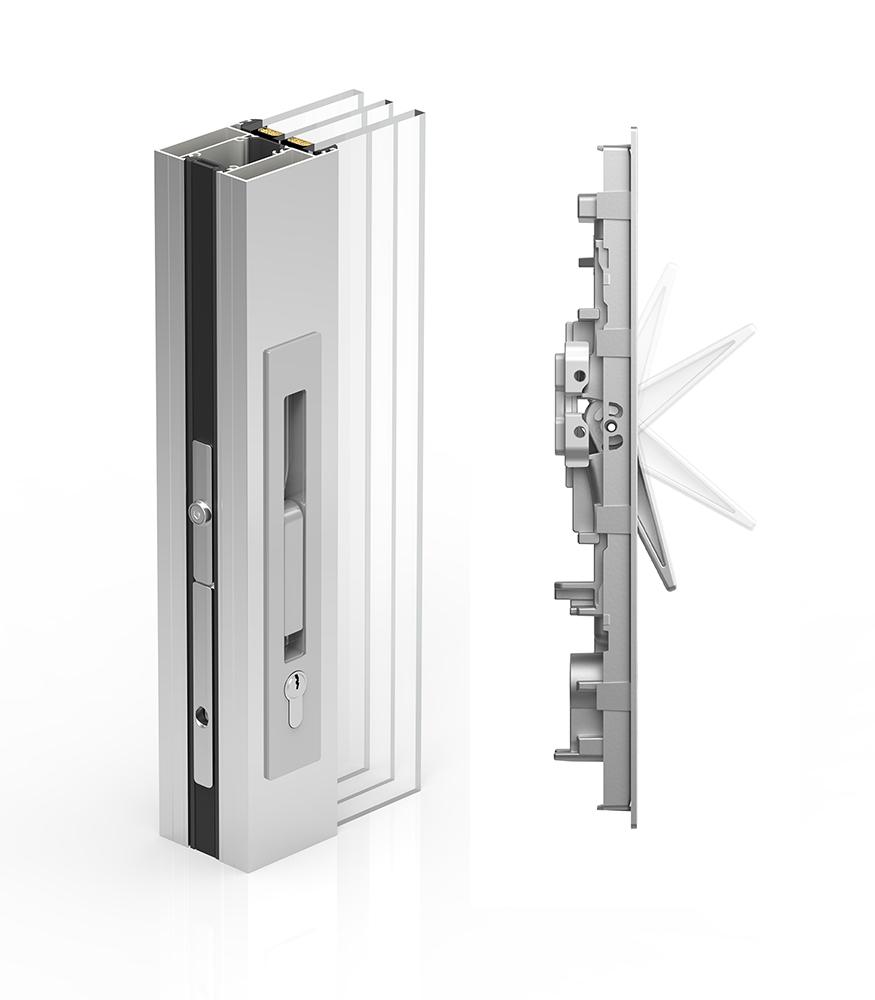

» It comes with the possibility of motorised opening for sashes up to 700 kg, and manual opening for up to 400 kg. Additionally, it allows to place multipoint lock systems by operating rod, with or without key

» The rollers are placed in the frame, and the sashes count with a stainless steel reinforced rolling area which makes the sliding movement smoother

» Possibility of corner sash encounters at 90º without needing a mullion

» The motorised version allows to completely hide the sash within the frame in closing position

» Maximum glazing thickness

56 mm

» Opening possibilities

Sliding of 2, 4 or 6 sashes

Up to 4 rail configurations

1 sash + 1 fixed / 2 sashes + 1 fixed

Possibility of corner sash encounters at 90º without mullions

Pocket solution possibility 1,2,3, and 4 sashes

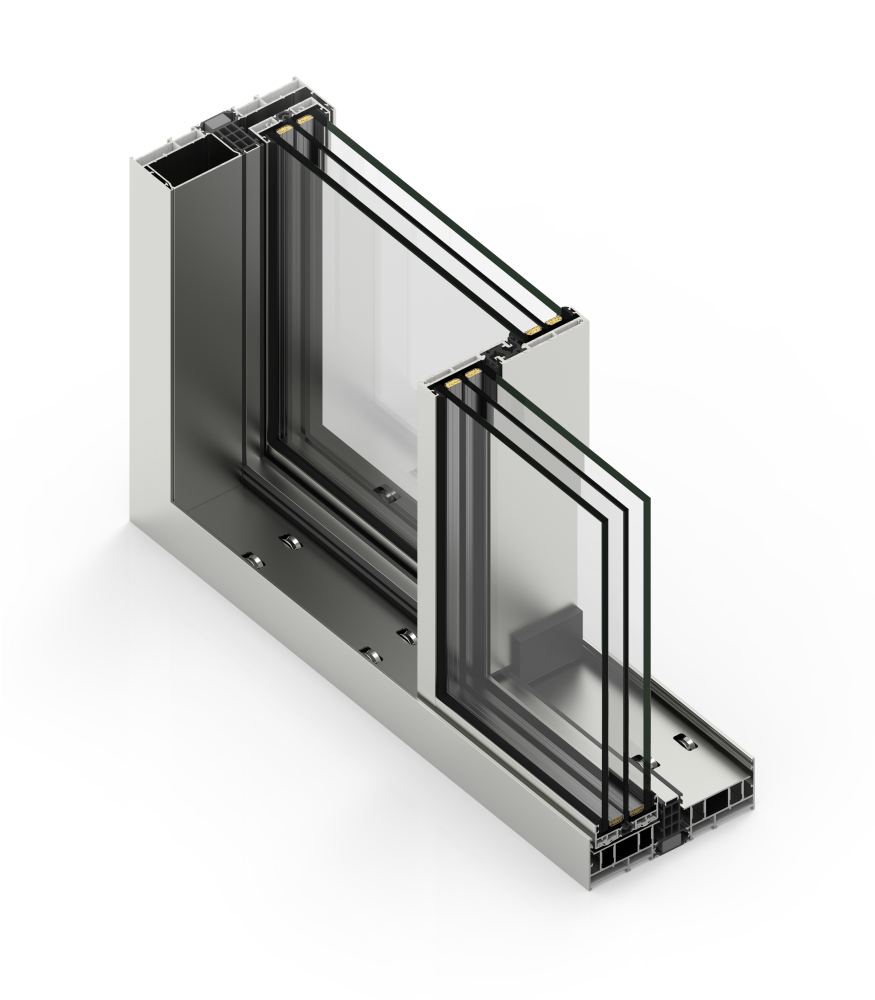

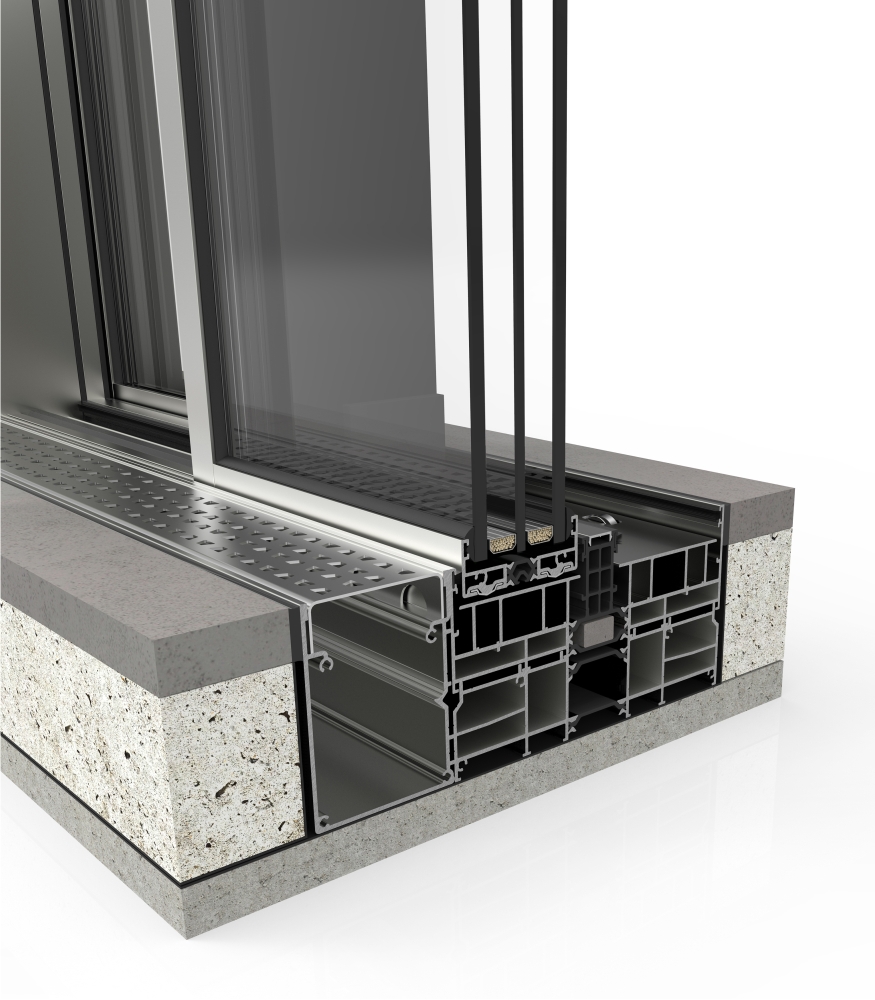

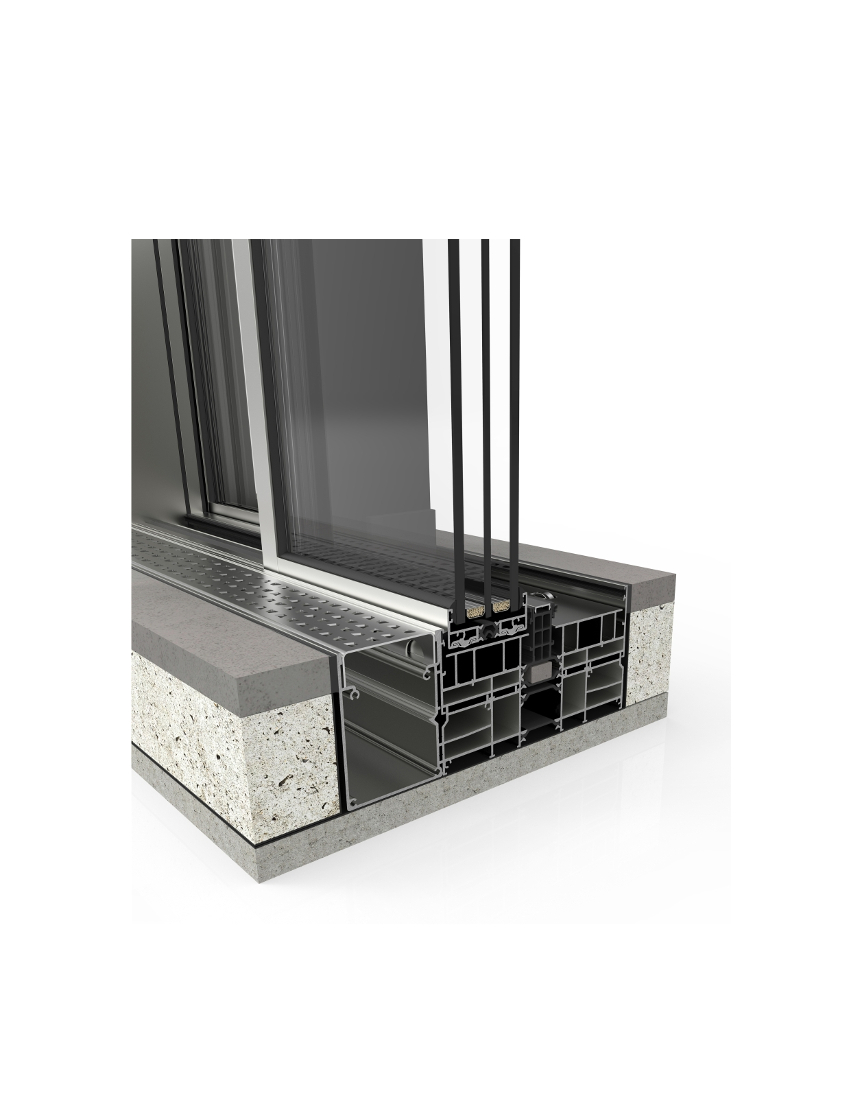

» Sections

Frame – 180 mm - 278 mm 3 rails
Sash – 69 mm

» Profile thickness

Door 2.0 mm

» Polyamide strip length

from 18 to 40 mm

» Maximum dimensions/sash

Width (L) = 4000 mm
Height (H) = 4000 mm

Glass surface ≤ 14 m²

» Maximum weight/sash

400 kg Manual

700 kg Motorised

Please consult regarding maximum weight and dimensions for other opening types

» Finishes

Possibility of dual colour systems

Colour powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodised
