» Coplanar door entry system with straight lines and frame depth of 80 mm
» It allows for the set up of an emergency exit with anti-panic devices according to EN 179 & EN 1125 regulations
» Transmittance from 0.8 W/m²K
» Maximum glazing: 64 mm
» Possibility of hidden hinges
» Maximum glazing thickness
64 mm
» Opening possibilities
Inward opening:
Side hung 1 or 2 sashes.
Outward opening:
Side hung 1 or 2 sashes
Automatic opening:
Internal and external hinged single sash

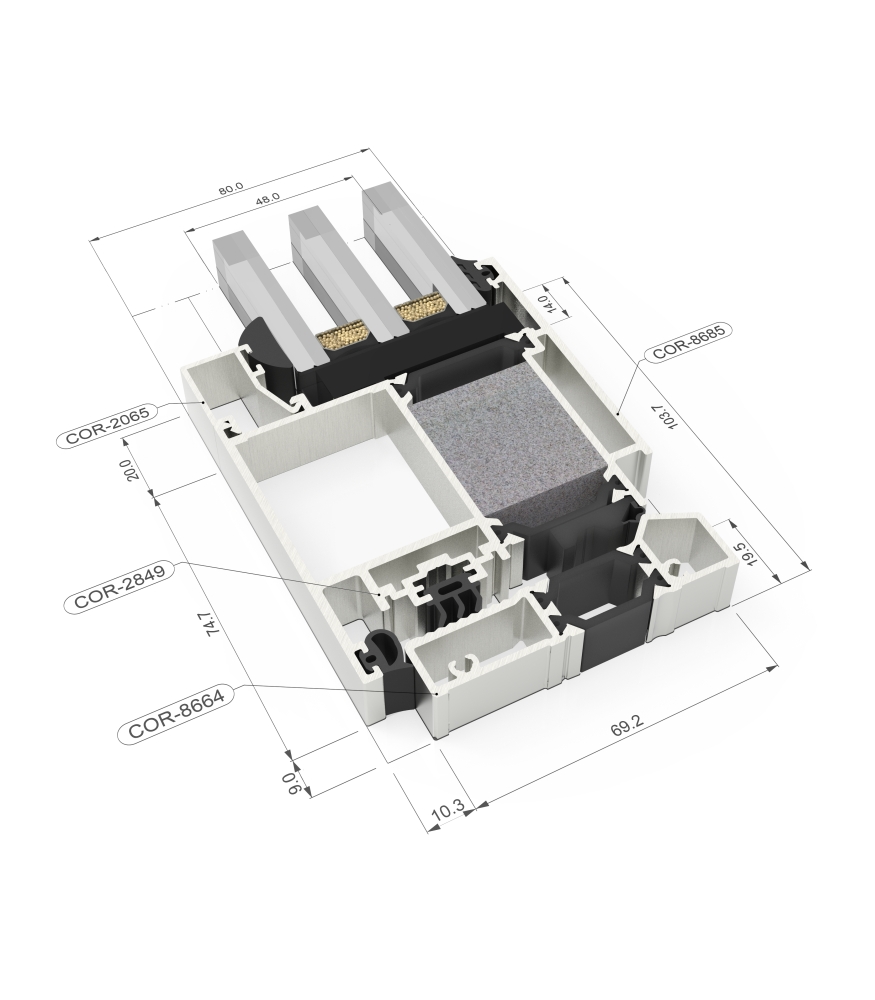

» Sections
Frame – 80 mm / Sash – 80 mm
» Profile thickness
Door 2.0 mm
» Polyamide strip length
34 mm
» Maximum dimensions/sash
Width (L) = 1,800 mm
Height (H) = 3,000 mm
Door
Width (L) = 1,500 mm
Height (H) = 3,000 mm
Hidden hinges door
» Maximum weight/sash
220 kg
Please consult regarding maximum weight and dimensions according to types
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
