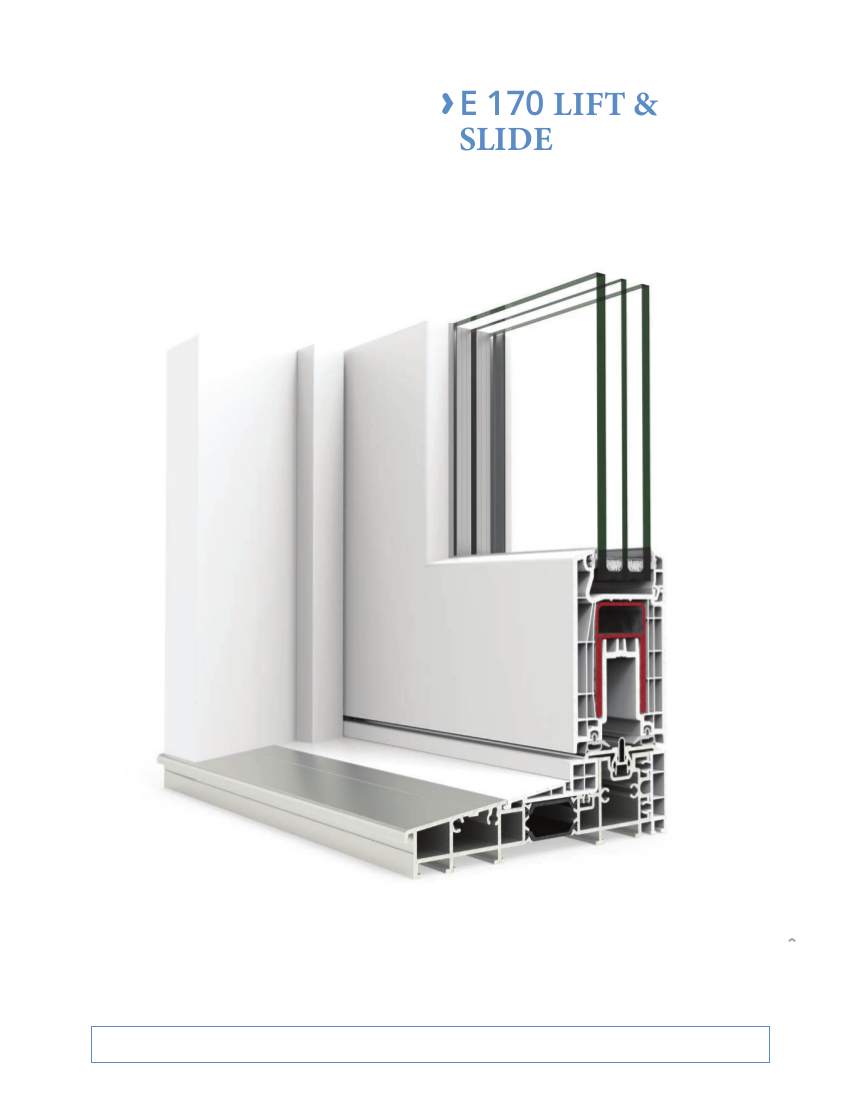

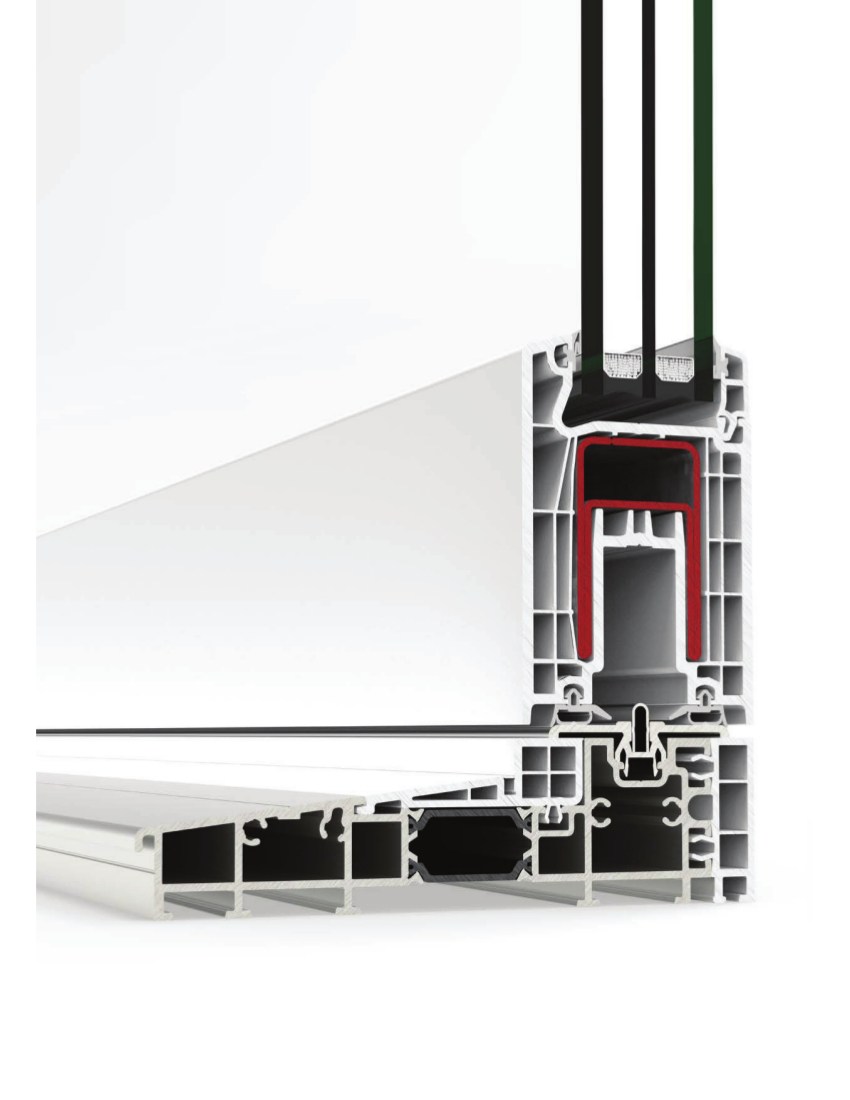

E 170 Lift & Slide – PVC
E 170 Lift & Slide – PVC
-
Description
-
Technical Data
» PVC lift & slide system with great thermal insulation properties
» Uw from 0.9 Wm²K
» Great idea for enclosing large spaces at the same time of guaranteeing maximum luminosity
» Stainless steel rails that provide ultra smooth sliding
» Maximum glazing thickness
40 mm
» Opening possibilities
Sliding 2, 3, 4 & 6 sashes

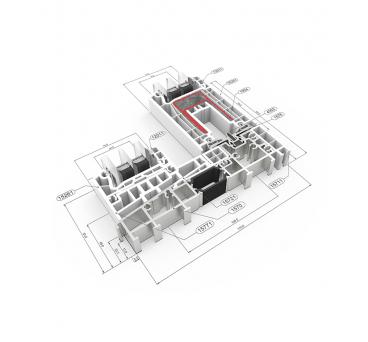

» Sections
Frame 170 mm
Sash 70 mm
» Maximum dimensions/sash
Width (L) = 3,000 mm
Height (H) = 2,750 mm
» Maximum weight/sash
300 kg
Please consult regarding maximum weight and dimensions according to types
» Finishes
Possibility of dual colour systems
White
Colour
Wood effect
