Bi-fold Plus Door
Bi-fold Plus Door
-
Description
-
Technical Data
-
Downloads

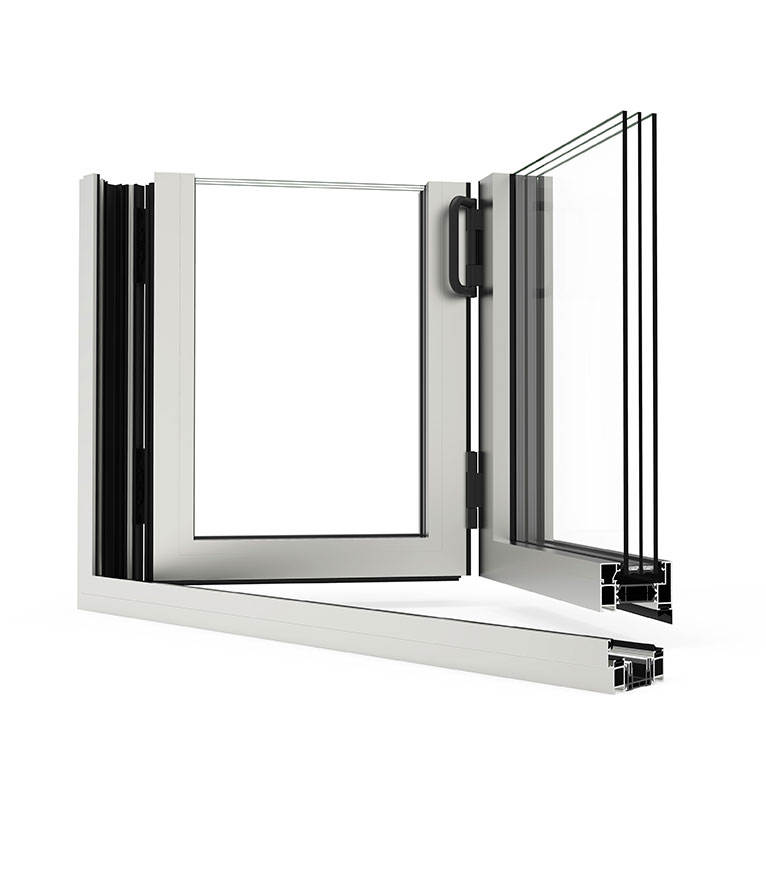

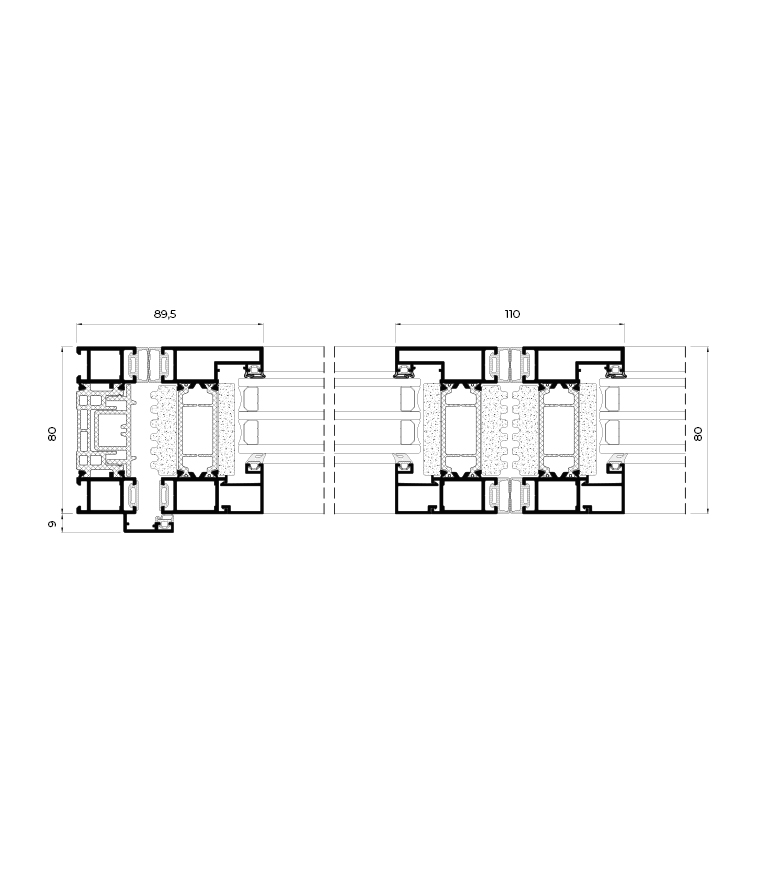

Separate environments and unify spaces with this bi-fold door system with an 80 mm deep frame. This evolution of the Bi-fold series offers an excellent thermal and acoustic performance, thanks to its 45 mm thermal bridge breakage and a glazing capacity up to 48 mm. Besides, it presents a slim central section of 110 mm which allows the maximisation of the glazed surface, filling the interior spaces with natural light.
Possibilities
» Accessibility
» Security hardware
» Glazing
Max. 48 mm
Min. 25 mm
» Opening possibilities
Inward opening
Up to 14 sashes
Outward opening
Up to 14 sashes
90º corner sash without mullion
» Sightlines
Frame 73 mm
Sash 73 mm
» Profile thickness
1,8 mm
» Polyamide strip length
Frame 20 mm
Sash 30 mm
» Maximum sash dimensions
Width (L) 1200 mm
Height (H) 3000 mm
» Maximum sash weight
120 Kg
Consult maximum weight and dimensions according to typologies.
» Finished
Possibility of bicolor systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
Bi-Folding_plus Openings Possibilities.pdf
