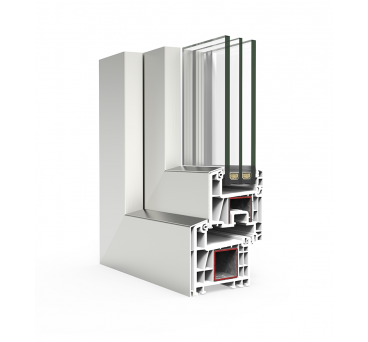

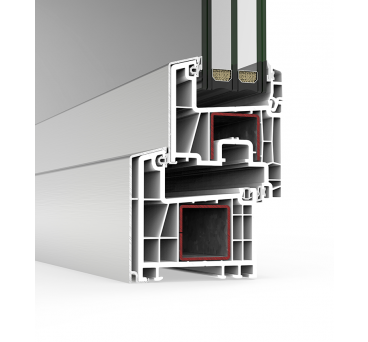

A 70 HYBRID

Hybrid

» Mixed window system, that combines the aesthetic beauty of aluminium with the performance benefits of PVC

» Possibility of 45º or 90º profile encounters

» Available with all of our anodising finishes and powder coatings on the external profiles (aluminium) and white colour or wrapping finishes on the internal profiles (PVC)

» Maximum glazing thickness

40 mm

» Opening possibilities

Open inwards: Side hung, turn & tilt and bottom hung.

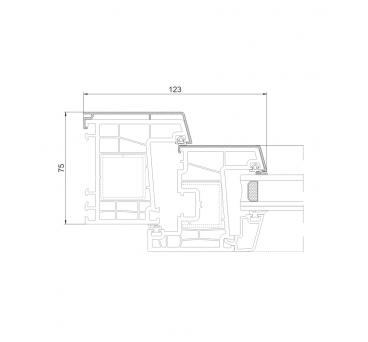

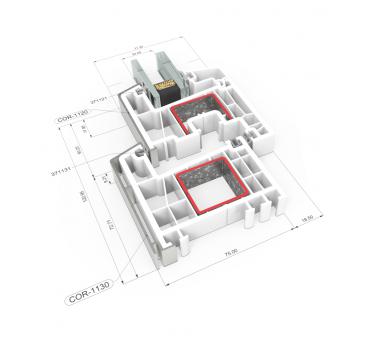

» Sections

Frame – 71 mm
Sash – 75 mm

» Maximum dimensions/sash

Window

Width (L) = 1,200 mm
Height (H) = 1,450 mm

Balcony

Width (L) = 1,100 mm
Height (H) = 2,150 mm

» Maximum weight/sash

Window 100 kg
Balcony 130 kg

Please consult regarding maximum weight and dimensions according to types.

» PVC Finishes

White
Colour
Wood imitation

» Aluminium Finishes

Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
