COR 70 OC TB
COR 70 OC TB
-
Description
-
Technical Data

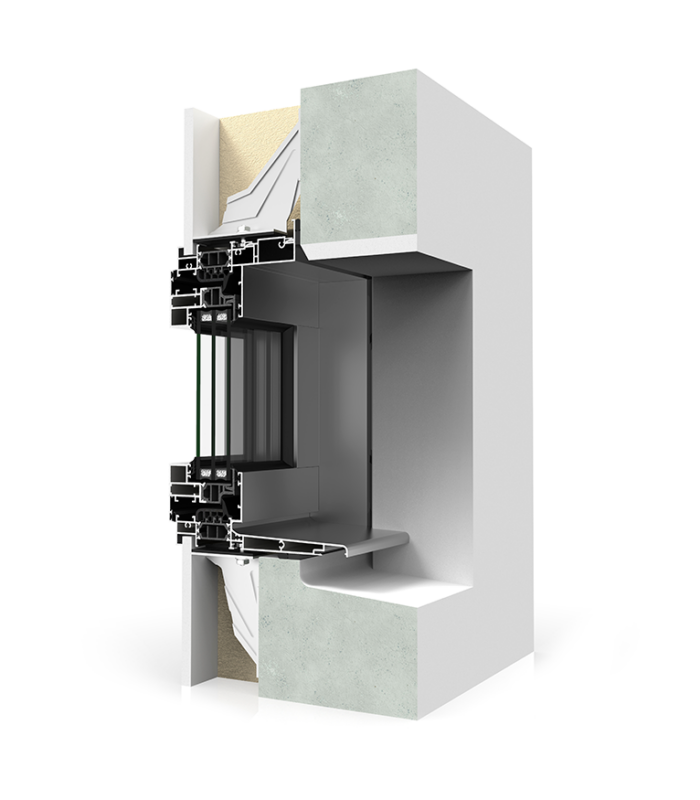

Hidden sash system oriented to the French market with monoblock frame that makes installation easier. Using this new frame allows faster fabrication and installation,avoiding overlaps, cills and any other complementary profiles, speeding up assembly and fitting. The fabricator can choose either straight or 45° cut.
Possibilities
» Security hardware
» Concealed hinges
» Concealed handle
» Concealed drainage
» Glazing
Max. 40 mm
Min. 26 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt only
» Sightlines
Frame 70 - 232 mm
Sash 70 mm
» Profile thickness
Window 1.9 mm
» Polyamide strip length
35 mm
» Maximum sash dimensions
Standard solution
Width (L) 1,300 mm
Height (H) 2,400 mm
HD Hardware (Side Hung)
Width (L) 1,200 mm
Height (H) 3,500 mm
» Maximum Sash Weight
160 kg
Consult maximum weight and dimensions according to typologies
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
