A 84 Hinged
A 84 Hinged
-
Description
-
Technical Data
-
Downloads
» Hinged window system of PVC with a frame depth of 84 mm
» 6 profile inner chambers in both the frame and the sash, allows for great energy efficiency
» Transmittance Uf from 1.16 W/m²K
» Central sash encounter of only 145 mm. Smaller seen section. Maximum luminosity
» Maximum glazing thickness
54 mm
» Opening possibilities
Inwards:
Side hung, turn & tilt and bottom hung
Outwards:
Side-hung

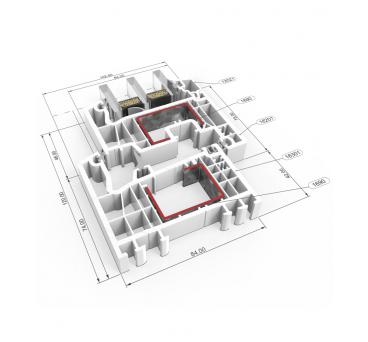

» Sections
Frame – 84 mm / Sash – 84 mm
» Maximum dimensions/sash
Window
Width (L) = 450-1400 mm
Height (H) = 450-2450 mm
Balcony
Width (L) = 650-1400 mm
Height (H) = 600-2500 mm
Door
Width (L) = 700-1300 mm
Height (H) = 600-2500 mm
» Maximum weight/sash
Window 130 kg
Balcony 130 kg
Door 160 kg
Please consult regarding maximum weight and dimensions according to types.
» Finishes
Possibility of dual colour systems
White
Colour
Wood effect
