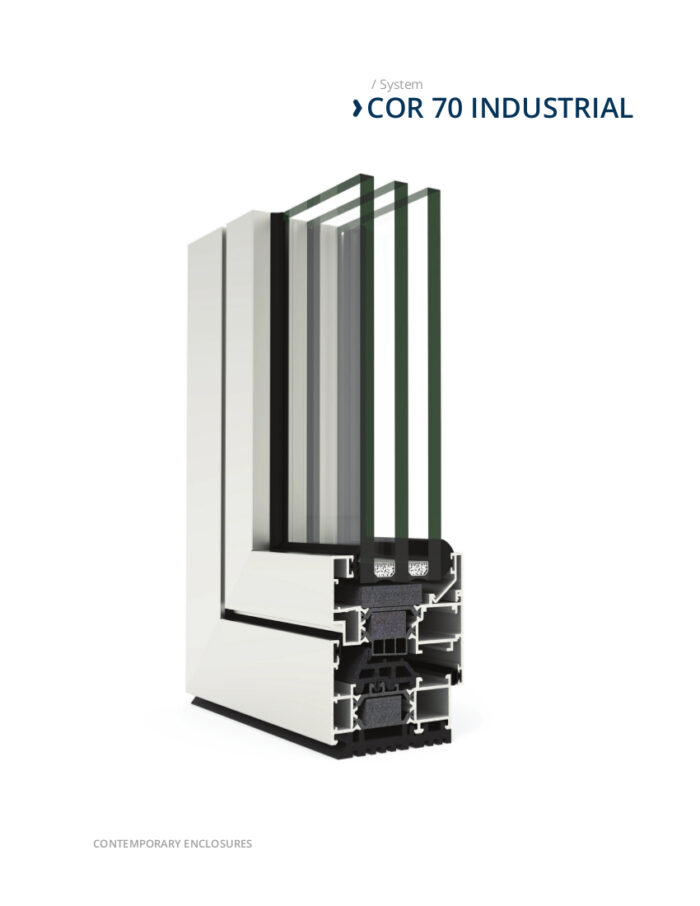

COR 70 Industrial TB

COR 70 Industrial TB

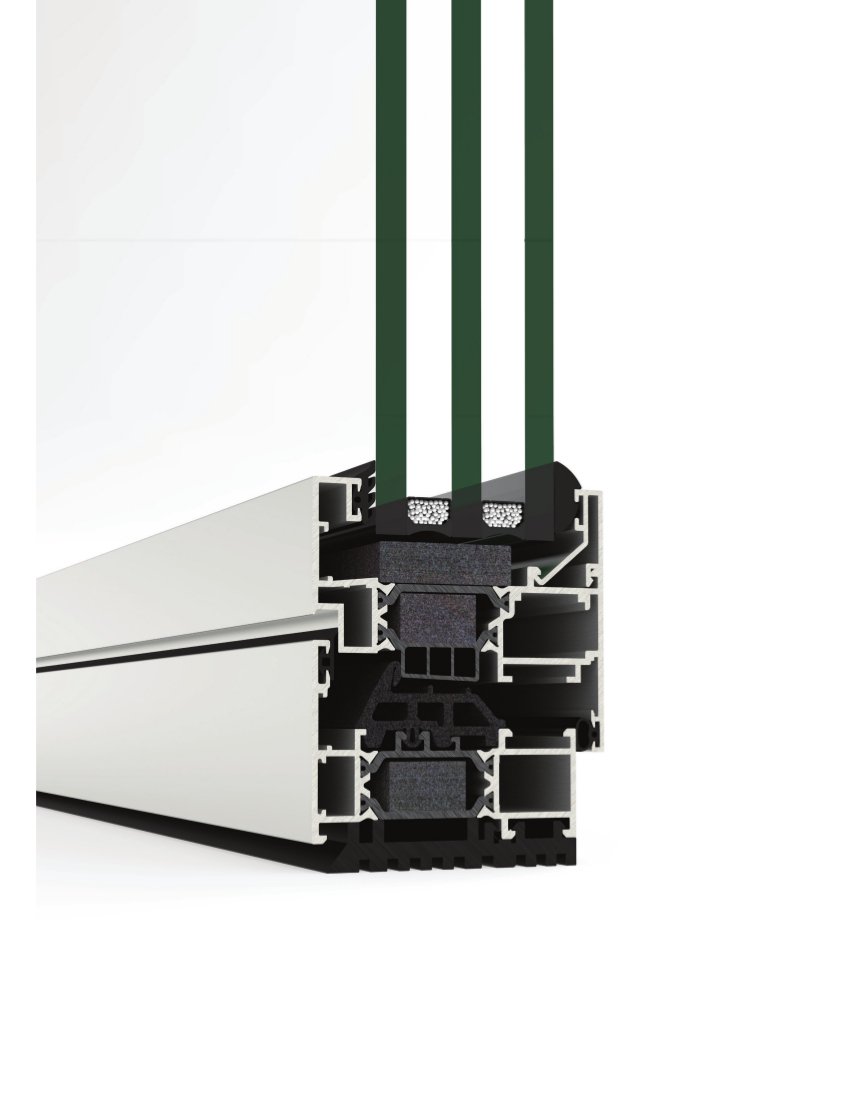

This 70 mm frame depth hinged system offers great thermal and acoustic performance combined with very simple fabrication, which is why it has become one of the most demanded series for aluminium windows, doors and balconies.

Possibilities
» Security hardware
» Concealed hinges
» Concealed drainage
» Concealed handle

» Glazing
Max. 63 mm
Min. 6 mm

» Opening possibilities

Inward opening
Side hung
Tilt & turn
Tilt only
Tilt & parallel

Outward opening
Side hung
Top hung
Pivoting on horizontal or vertical axis

» Sightlines
Frame 70 mm
Sash 78 mm

» Profile thickness
Window 1.5 mm
Door 1.7 mm

» Polyamide strip length
32 - 35 mm

» Maximum sash dimensions
Width (L) 1,500 mm
Height (H) 2,600 mm

» Maximum sash weight
160 kg

» Aesthetic possibilities
Sash: Straight / Bead: Straight or curved

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
