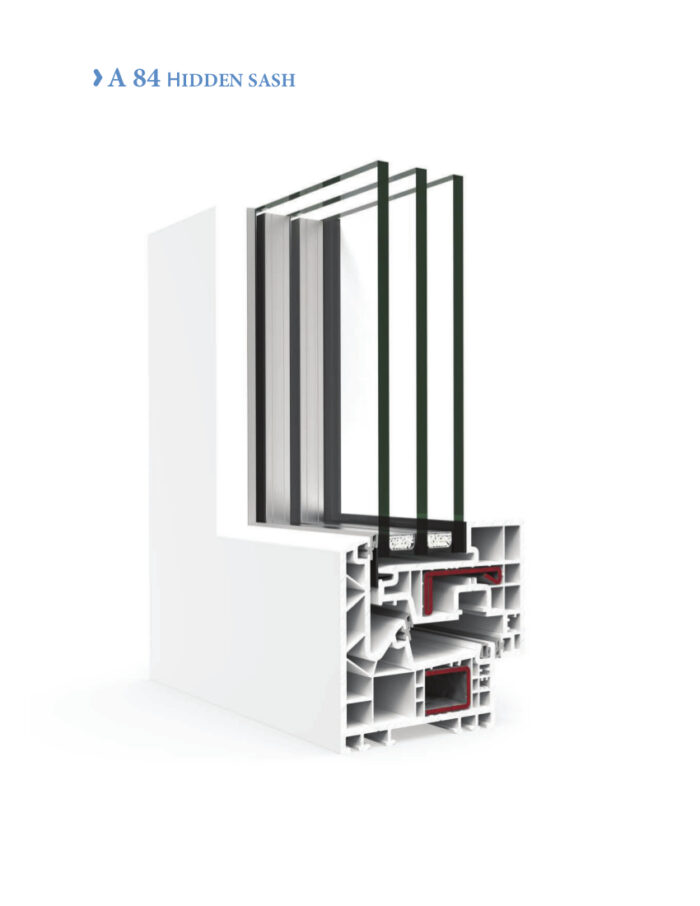

A 84 Hidden Sash
A 84 Hidden Sash (English)
-
Description
-
Technical Data
-
Downloads
» Minimalism in PVC, sightline of 90 mm.

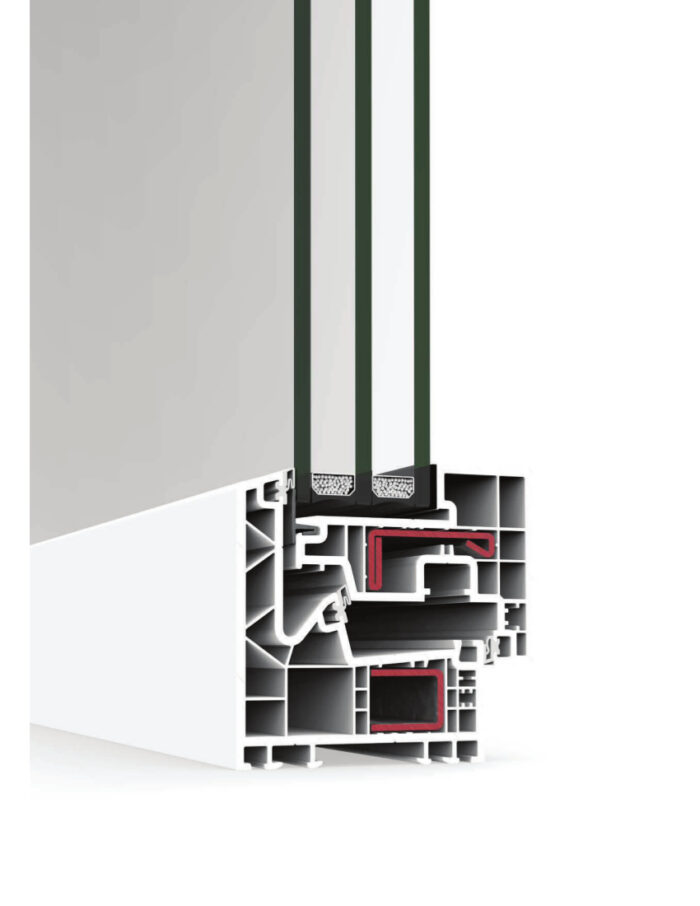

» Hinged system of 84 mm depth and profile with 6 inside chambers and insulating foams inside the frame and sash that allow to reach the best thermal performance in the market.
» The A 84 Hidden Sashv ersion , which Uf value starts from 1.11 W/m²K, allows a central interlock of 90 mm, which is the same as the lateral sideline.
» Maximum glazing thickness
46.5 mm
» Opening possibilities
Inwards: Side hung, turn&tilt, tilt&slide and bottom hung.

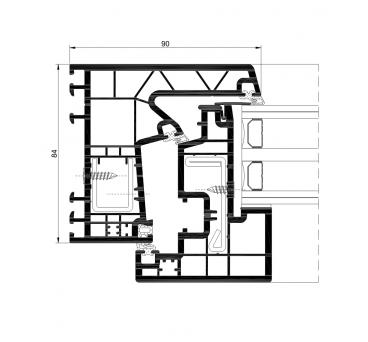

» Sections
Frame – 84 mm
Sash – 84 mm
» Maximum dimensions/sash
Width (L) = 400-1400 mm
Height (H) = 450-2500 mm
» Maximum weight/sash
130 kg Window / Balcony
Please consult regarding maximum
weight and dimensions according to types.
» Finishes
White
Colour
Dual colour
Wood effect
