Millennium Plus 70 Door
Millennium Plus 70 Door
-
Description
-
Technical Data
-
Downloads

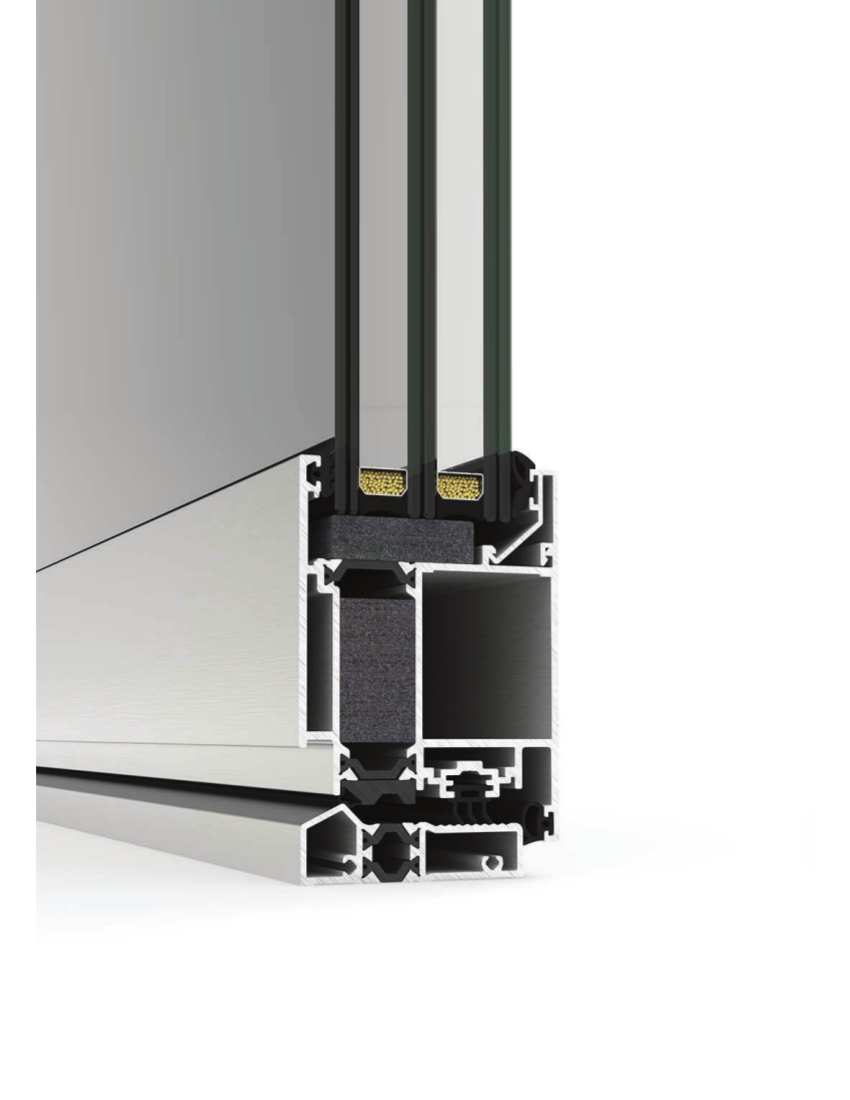

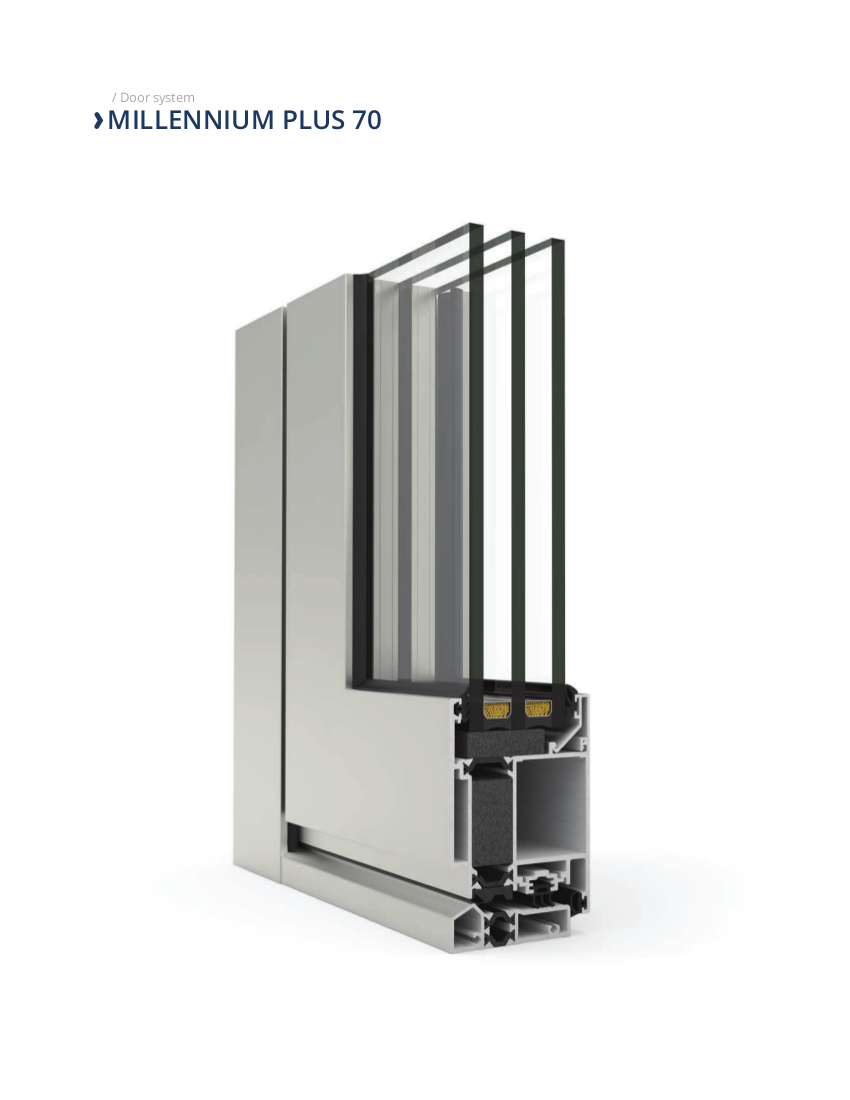

» Coplanar door entry system with straight lines and frame depth of 70 mm
» It allows for the set up of an emergency exit with anti-panic devices according to EN 179 & EN 1125 regulations
» Resistance to repeated openings and closings
(EN 1191:2000) : 1,000,000 cycles
» Maximum glazing: 54 mm
» Possibility of hidden hinges
» Maximum glazing thickness
54 mm
» Opening possibilities
Open In:
Side hung 1 or 2 sashes
Open Out:
Side hung 1 or 2 sashes
Automatic opening:
Internal and external hinged single sash
» Sections
Frame – 70 mm / Sash – 70 mm
» Profile thickness
Door 2.0 mm
» Polyamide strip length
24 mm
» Maximum dimensions/sash
Width (L) = 1,800 mm
Height (H) = 3,000 mm
Door
Width (L) = 1,500 mm
Height (H) = 3,000 mm
Hidden hinges door
» Maximum weight/sash
220 kg
Please consult regarding maximum weight and dimensions according to types
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
