4600 Lift & Slide HI
4600 Lift & Slide HI
-
Description
-
Technical Data
» Lift and slide door system that exhibits the best thermal insulation
» Uw from 0.9 Wm²K
» Possibility of two options for central sash encounter, 110 mm standard section and minimalist solution of only 50mm
» Possibility of large sash dimensions makes this system ideal for enclosing large spaces, at the same time that it provides maximum luminosity
» It is a robust system in appearance, but light at the same time, providing an ultra smooth opening action and perfect sash sliding over a stainless steel rail
» Maximum glazing thickness
55 mm
»Opening possibilities
Sliding of 2, 3, 4 & 6 sashes
Possibility of 1 rail (1 sash + 1 fixed light)
& 3 rails

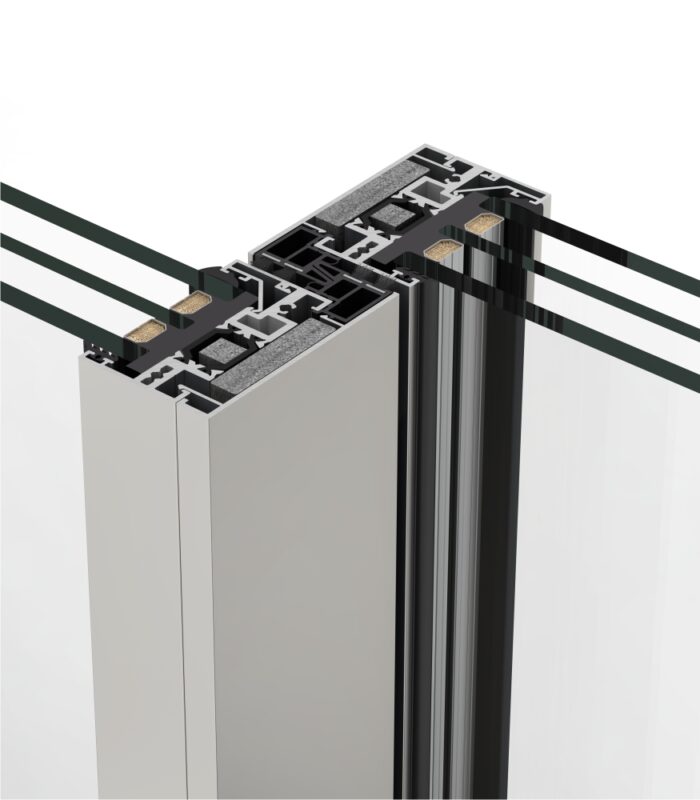

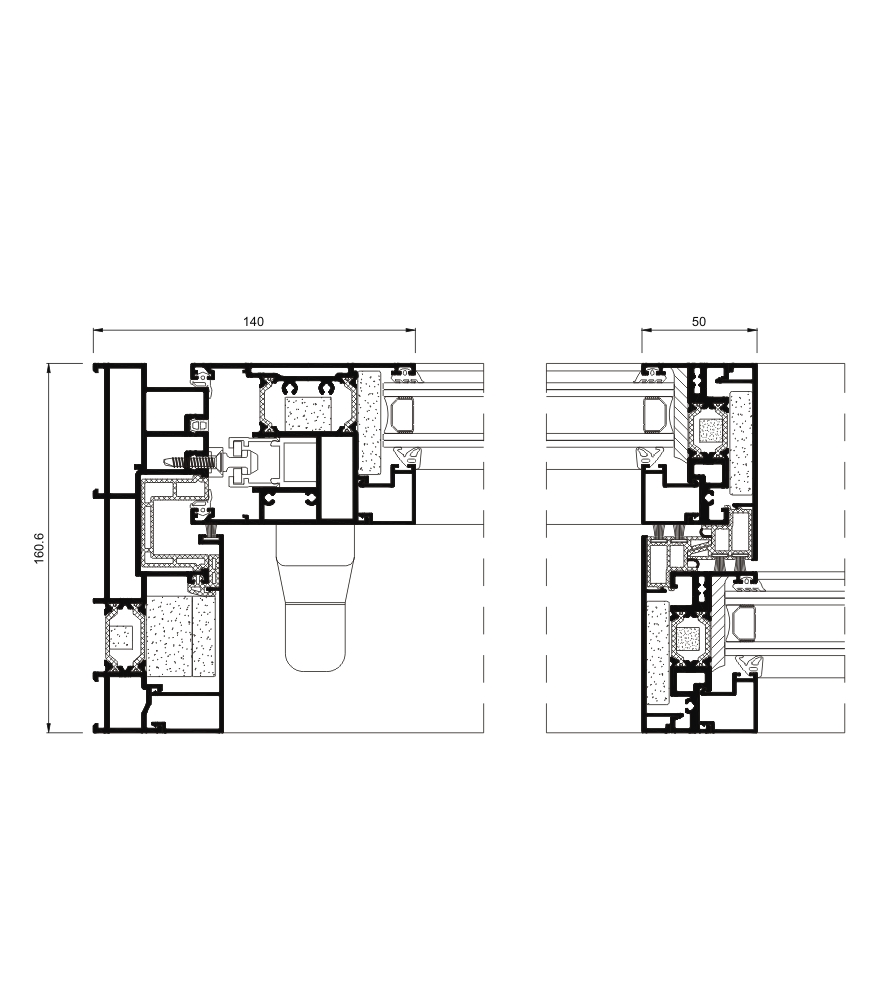

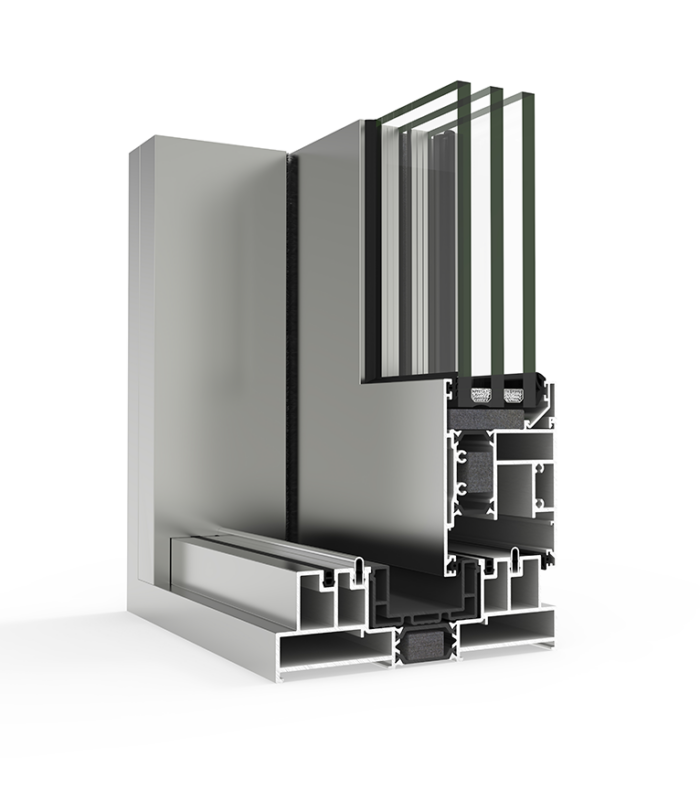

» Sections
Frame 160.6 mm - 3 rails 251 mm
Sash 70 mm
» Profile thickness
Door 2.0 mm
» Polyamide strip length
Frame 35 mm / Sash 24 mm
» Maximum dimensions/sash
Width (L) = 3,300 mm
Height (H) = 3,300 mm
» Maximum weight/sash
400 kg
Please consult regarding maximum weight and dimensions for other opening types
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
