Façade SG 62

Façade SG 62

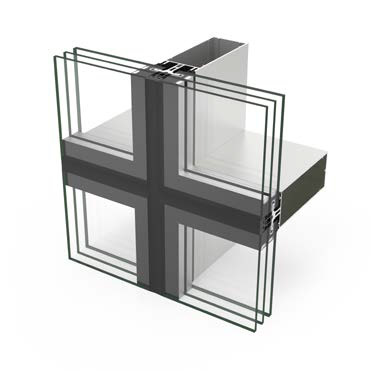

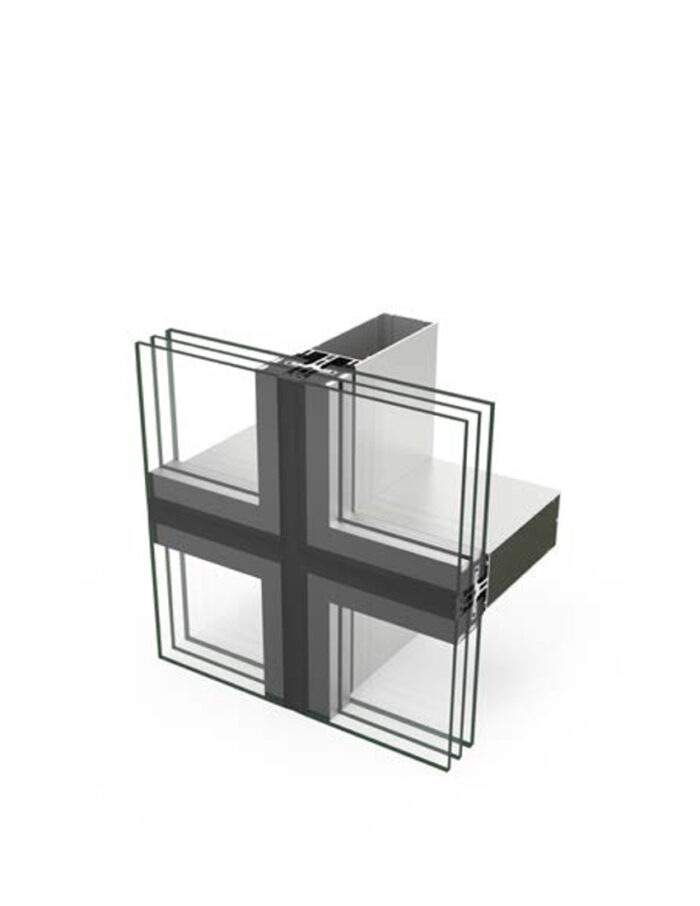

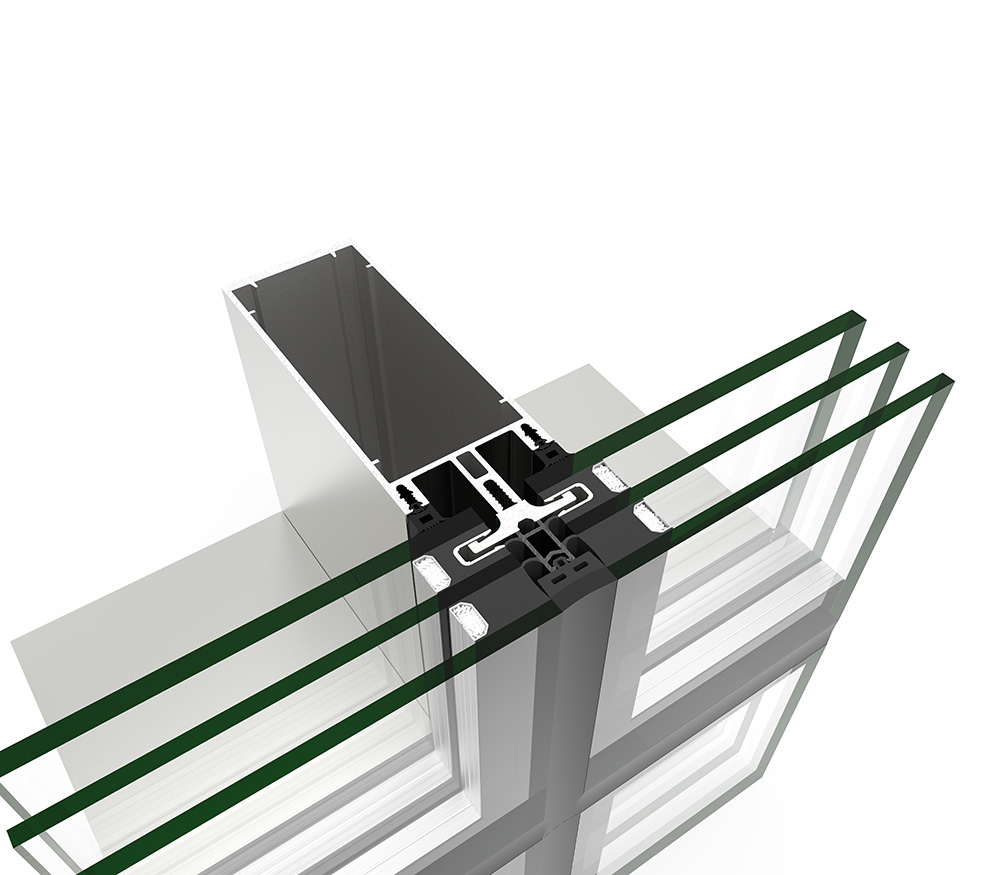

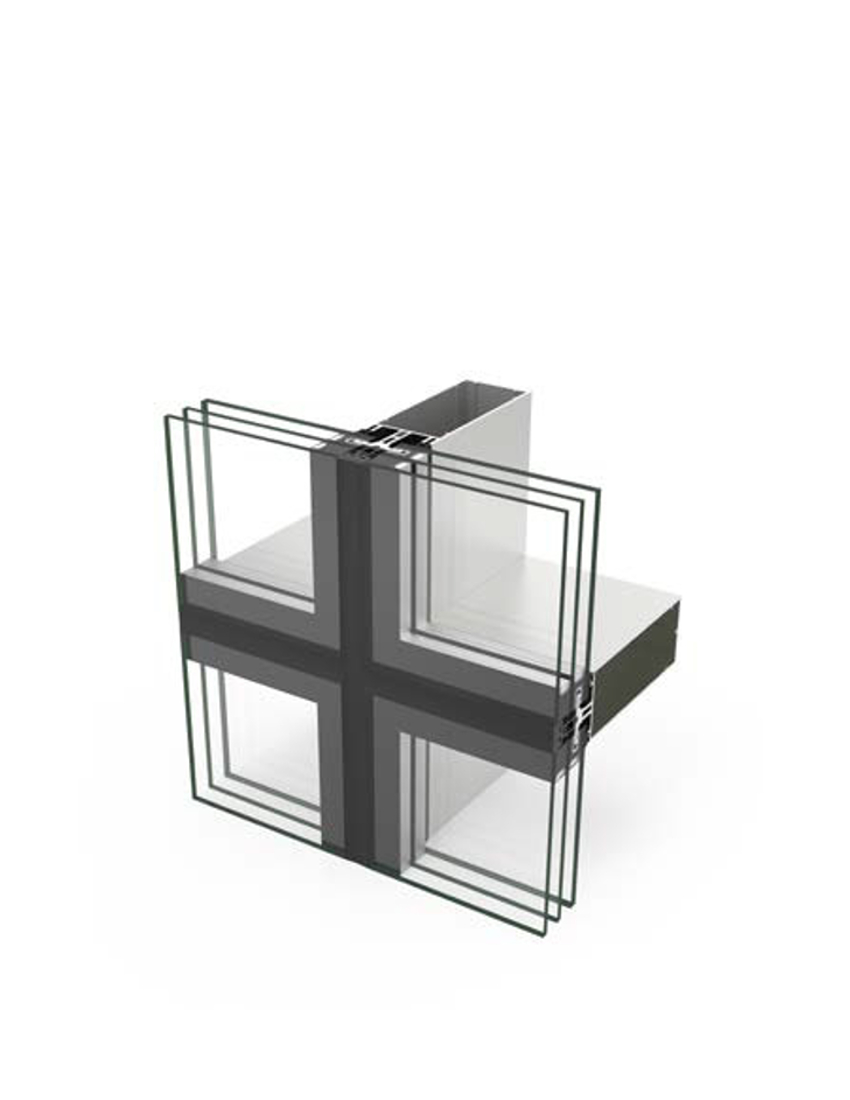

This is a traditional system also known as the Stick system.It fixes the glazing to the load bearing profiles by using clips. This system requires an insert that is fitted in to the glazing chamber (U profile). The combination of the clip plus the insert allows for the glazing to be fixed on all four sides. Following the installation of the clips, the gasket between the glazings must be sealed with ultra violet resistant silicone. The system also incorporates a lower sealing gasket over which the cord is ‘supported’ on the inside.

» Glazing

Maximum glazing 64 mm*

Mínimum glazing 6 mm

*Consult us for greater thicknesses

» Sections

Mullion 62 mm

Transom 62 mm

» Profile thickness

Mullion 2.5 y 2.8 mm

Transom 2,8 mm

» Maximum weight

800 Kg

Consult maximum weight and dimensions according to typologies

» Finishes

Colour powder coating (RAL, mottled, rough)

According to Qualicoat Standard > 60 microns

Wood effect powder coating

According to Qualideco Standard

Anodized

According to Ewwa Euras

Standard Class 15

Optionally Class 20 y 25
